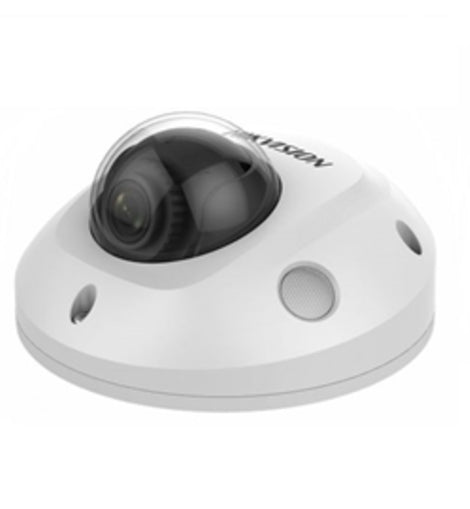

Hikvision Camera DS-2CD2523G0-IS 2.8mm Dome IP66 2MP 28MM Wide Dynamic Range POE/12 Retail
o 1920 x 1080@30fps
o IR: up to 10 m
o H.265, H.265+
o120dB WDR
o Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
o PoE
o EXIR
o Wi-Fi (Optional)
Camera
Image Sensor:
1/2.7 Progressive Scan CMOS
Signal System:
PAL/NTSC
Min. Illumination:
Color: 0.01 Lux at (F1.2, AGC ON), 0.028 lux at (F2.0, AGC ON), 0 lux with IR
Shutter time:
1/3 s to 1/100,000 s
Slow shutter:
Support
Lens:
2.8 mm: Horizontal field of view: 114o, Vertical field of view: 62o, Diagonal field of view: 135o
Lens Mount:
M12
Adjustment Range:
Pan: -30o to +30o, tilt: 0o to 75o, rotate: 0o to 360o
Day and Night:
IR Cut Filter
Wide Dynamic Range:
120 dB
Digital noise reduction:
3D DNR
Focus:
Fixed
Compression Standard
Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:
Main Profile/High Profile
Video bit rate:
256Kbps to 16Mbps
Audio Compression:
G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:
Yes
Max. Image Resolution:
1920 x 1080
Frame Rate:
50Hz:25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream:
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream:
50Hz: 25fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240)
Image Enhancement:
BLC/3D DNR/BLC
Image Settings:
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:
Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch:
Auto/Schedule/Day/Night/Triggered by Alarm In (-S)
Network
Network Storage:
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:
ONVIF (Profile S, Profile G), ISAPI
Interface
Audio:
with -S model:2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block
Communication Interface:
1 RJ45 10M / 100M Ethernet interface
Alarm:
1 Input: Alarm in, 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block
On-board storage:
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:
Yes
Audio
Environment Noise Filtering:
Support
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
o IR: up to 10 m
o H.265, H.265+
o120dB WDR
o Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
o PoE
o EXIR
o Wi-Fi (Optional)
Camera
Image Sensor:
1/2.7 Progressive Scan CMOS
Signal System:
PAL/NTSC
Min. Illumination:
Color: 0.01 Lux at (F1.2, AGC ON), 0.028 lux at (F2.0, AGC ON), 0 lux with IR
Shutter time:
1/3 s to 1/100,000 s
Slow shutter:
Support
Lens:
2.8 mm: Horizontal field of view: 114o, Vertical field of view: 62o, Diagonal field of view: 135o
Lens Mount:
M12
Adjustment Range:
Pan: -30o to +30o, tilt: 0o to 75o, rotate: 0o to 360o
Day and Night:
IR Cut Filter
Wide Dynamic Range:
120 dB
Digital noise reduction:
3D DNR
Focus:
Fixed
Compression Standard
Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:
Main Profile/High Profile
Video bit rate:
256Kbps to 16Mbps
Audio Compression:
G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:
Yes
Max. Image Resolution:
1920 x 1080
Frame Rate:
50Hz:25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream:
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream:
50Hz: 25fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240)
Image Enhancement:
BLC/3D DNR/BLC
Image Settings:
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:
Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch:
Auto/Schedule/Day/Night/Triggered by Alarm In (-S)
Network
Network Storage:
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:
ONVIF (Profile S, Profile G), ISAPI
Interface
Audio:
with -S model:2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block
Communication Interface:
1 RJ45 10M / 100M Ethernet interface
Alarm:
1 Input: Alarm in, 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block
On-board storage:
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:
Yes
Audio
Environment Noise Filtering:
Support
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
