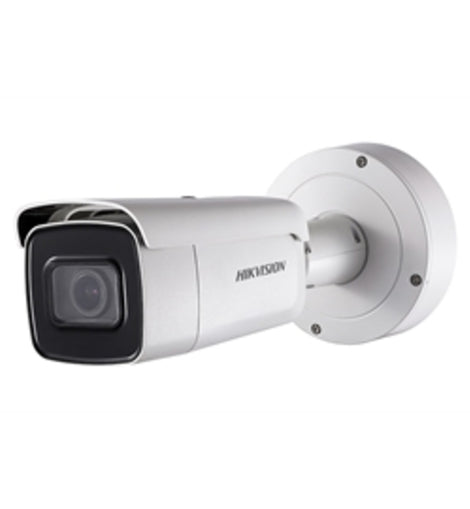

The Hikvision DS-2CD2643G0-IZS Outdoor IR Varifocal Bullet Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage.

Minimum Illumination: Color: 0.018 lux at (f/1.6, AGC on), 0 Lux with IR
2688 x 1520 Resolution at 30 fps
2.8 to 12 mm Motorized Varifocal Lens
H.265+, H.265, H.264+, H.264
Main Stream: 30 fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
EXIR 2.0 Range Up to 100 ft (30 m)
12 VDC and PoE (802.3at)


Camera
Image Sensor: 1/3" Progressive Scan CMOS
Minimum Illumination: Color: 0.018 lux at (f/1.6, AGC on), 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
Auto-Iris: No
Day/Night: IR Cut Filter
Digital Noise Reduction: 3D DNR
WDR: 120dB
Angle Adjustment: Pan: 0^o to 360^o, tilt: 0^o to 90^o, rotate: 0^o to 360^o
Lens
Focal Length: 2.8 to 12 mm motorized varifocal lens
Aperture: f/1.6
Focus: Auto
FOV: Horizontal FOV: 104^o to 29^o, vertical FOV: 55^o to 17^o, diagonal FOV: 125^o to 34^o
Lens Mount: 14
IR
IR Range: Up to 165 ft (50 m)
Wavelength: 850 nm
Compression Standard
Video Compression: Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264
H.264 Type: Main profile/high profile
H.264+: Main stream and sub-stream support
H.265 Type: Main Profile
H.265+: Main stream and sub-stream support
Video Bit Rate: 256 Kbps to 16 Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate: 64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2)
Smart Features
Behavior Analysis: Line crossing detection, intrusion detection
Exception Detection: Yes
Region of Interest: One fixed region for main stream and sub-stream
Maximum Resolution: 2688 x 1520
Main Stream: 30 fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
Sub Stream: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream: 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement: BLC/3D DNR
Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping: No
Day/Night Switching: Day/night/auto/schedule/triggered by alarm in
Network
Network Storage: MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering
API: ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View: Up to 6 channels
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Client: iVMS-4200, Hik-Connect
Web Browser: IE 8+, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+
Interface
Audio: 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface: 1-port RJ45 10M/100M self-adaptive Ethernet port
Alarm: 1 input, 1 output (up to 12 VDC, 30 mA), terminal block
Video Output: 1 Vp-p Composite Output(75 Omega/BNC)
On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC: H.264 and H.265 encoding
Reset Button: Yes
Audio
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions: -22^o F to 140^o F (-30^o C to 60^o C) humidity 95% or less (non-condensing)
Power Supply: 12 VDC +/- 25%, terminal block, PoE (802.3af, class 3)
Power Consumption and Current: 12 VDC, 0.8 A, maximum 10 W PoE (802.3at, 37 V to 57 V), 0.35 A to 0.2 A, maximum 12 W
Protection Level: IP67, IK10, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material: Metal
Item Dimension (L"xW"xH")
15 x 7 x 7

Weight
6 lbs

Warranty Information
NA
