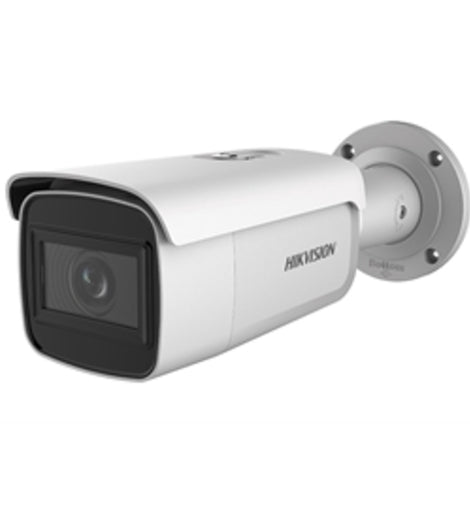

The Hikvision DS-2CD2683G1-IZS Outdoor IR Varifocal Bullet Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage.

Minimum Illumination: Color: 0.01 lux @ (f/1.2, AGC on), 0.018 lux @ (f/1.6, AGC on), 0 Lux with IR

3840 x 2160 Resolution @ 15 fps

2.8 to 12 mm Motorized Varifocal Lens

H.265+, H.265, H.264+, H.264

Main Stream: 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)

EXIR 2.0 Range Up to 165 ft (50 m)

12 VDC and PoE+ (802.3at)


Camera
Image Sensor
1/2.5" Progressive Scan CMOS
Minimum Illumination
Color: 0.01 lux at (f/1.2, AGC on), 0.018 lux at (f/1.6, AGC on), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Auto-Iris
No
Day/Night
IR Cut Filter
Digital Noise Reduction
3D DNR
WDR
120dB
Angle Adjustment
Pan: 0^o to 355^o, tilt: 0^o to 90^o, rotate: 0^o to 355^o
Lens
Focal Length
2.8 to 12 mm motorized varifocal lens
Lens Type
Motorized
Aperture
f/1.6
Focus
Auto
FOV
Horizontal FOV: 105^o to 34.5^o, vertical FOV: 55^o to 19^o, diagonal FOV: 125^o to 40^o
Lens Mount
14
IR
IR Range
Up to 165 ft (50 m)
Wavelength
850 nm
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264
H.264 Type
Main profile/high profile
H.264+
Main stream support
H.265 Type
Main profile
H.265+
Main stream support
Video Bit Rate
32 Kbps to 16 Mbps
Smart Features
Behavior Analysis
Line crossing detection, intrusion detection
Exception Detection
Yes
Region of Interest
One fixed region for main stream and sub-stream
Maximum Resolution
3840 x 2160
Main Stream
15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream
30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement
BLC/3D DNR
Image Setting
Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping
No
Day/Night Switching
Day/night/auto/schedule/triggered by alarm in
Network
Network Storage
MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Audio
1 input (line in), 1 output (line out), mono sound, terminal block
Communication Interface
1-port RJ45 10M/100M self-adaptive Ethernet port
Alarm
1 input, 1 output (maximum 12 VDC, 30 mA), terminal block
Video Output
1 Vp-p composite output(75 Omega/BNC)
On-Board Storage
Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC
H.264 and H.265 encoding
Reset Button
Yes
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2)
General
Operating Conditions
-22^o F to 140^o F (-30^o C to 60^o C) humidity 95% or less (non-condensing)
Power Supply
12 VDC +/- 25%, 5.5 mm coaxial power plug, PoE (802.3at, class 4)
Power Consumption and Current
12 VDC, 1.2 A, maximum 14.5 W, PoE (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, maximum 18 W
Protection Level
IP67
Material
Metal
Item Dimension (L"xW"xH")
8 x 16 x 8

Weight
8 lbs

Warranty Information
NA
