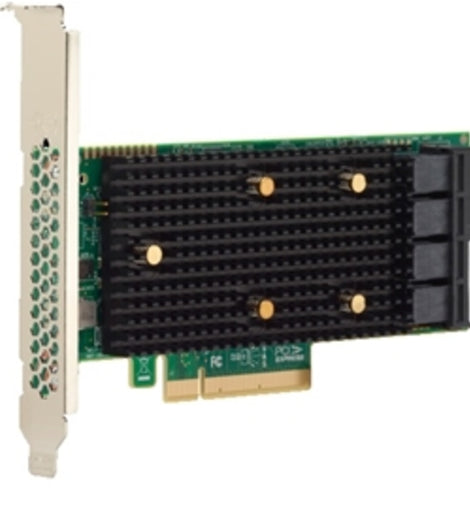

LSI Logic Controller Card 05-50031-02 Tri-Mode 9400-8i8e 16Port Ext.12Gb/s SAS/SATA PCI Express 3.1 Retail
Industry's First HBA with Tri-Mode SerDes Technology
Broadcom enables high performance storage connectivity and flexible system designs that support any combination of NVMe, SAS and SATA devices with the industry's first HBA with Tri-Mode SerDes. The Tri-Mode HBAs expand Broadcom's industry leading family of 12Gb/s SAS HBAs with 8 and 16 port internal, external and combination Tri-Mode port options.
NVMe Performance Gains for Storage
The Tri-Mode Storage HBAs bring NVMe performance benefits to the storage tier by providing connectivity and data protection that HBAs have offered for over 20 years for SAS/SATA interfaces. Based on the singlecore SAS3516, SAS3416 or SAS3408 Tri-Mode Storage I/O controllers (IOC), these HBAs provide bandwidth and IOPS performance increase compared to the previous generation and are ideal for high-end servers utilizing internal storage or connecting to large-scale external storage enclosures.
Applications
o High-port count SAS/SATA/NVMe adapters for direct attached high connectivity applications
o Tri-Mode connectivity enabling maximum data center flexibility
o Flexible solutions for cloud computing
o External storage requiring high connectivity SAS/SATA interface for host or drive side connect
Key Features
o Tri-Mode Storage Interface Ports
--SFF-8680 Bay
--x1 SAS
-- x1 SATA
--x2 SAS (Multi Link)
--Two x1 SAS (Dual port using MPIO)
--SFF-8639 (U.2) Bay
-- x2, x4 NVMe
o Supports 12, 6, and 3Gb/s SAS and 6, 3Gb/s SATA data transfer rates
o Up to 8 storage interface PCIe links. Each link supporting x4 or x2 link widths up to 8.0 GT/s (PCIe Gen3) per lane
Ports
8 internal/8 external
Connectors
Two (x4) SFF-8643
Two (x4) SFF-8644
Storage Interface Support
SAS, SATA, NVMe (PCIe)
Max NVMe Direct Attach Devices
Two x4, Four x2 (internal only)
Max Devices Per Controller
SAS/SATA: 1024
NVMe: 24 (internal only)
I/O Processor / SAS Controller
SAS3516
Host Bus Type
PCIe 3.1 x8
Typical Power
12.39W
Cable Support
Passive Copper, Active Copper (external), Active Optical (external)
Operating Conditions
Operating: 10oC to 55oC, 20 to 80% non-condensing Airflow: 200 LFM Storage: -45oC to 105oC, 5 to 95% non-condensing
MTBF (Calculated)
>4,500,000 hours at 40oC
Operating Voltage
+12V +/-8%, 3.3V +/-9%
Regulatory Certifications
USA (FCC 47 CFR part 15 Subpart B, class B)
Canada (ICES -003, Class B)
Taiwan (CNS 13438)
Japan (VCCI V-3)
Australia/New Zealand (AS/NZS CISPR 22)
Korea (RRA no 2013-24 and 25)
Europe (EN55022/EN55024)
Safety: EN/IEC/UL 60950, RoHS, WEEE
OS Support
Microsoft Windows, Linux, VMware. Contact Oracle support for Oracle Solaris driver or software support.
Item Dimension (L inchxW inchxH inch)
11 x 6 x 2
Weight
1.00 lb
Warranty Information
3 Years
Broadcom enables high performance storage connectivity and flexible system designs that support any combination of NVMe, SAS and SATA devices with the industry's first HBA with Tri-Mode SerDes. The Tri-Mode HBAs expand Broadcom's industry leading family of 12Gb/s SAS HBAs with 8 and 16 port internal, external and combination Tri-Mode port options.
NVMe Performance Gains for Storage
The Tri-Mode Storage HBAs bring NVMe performance benefits to the storage tier by providing connectivity and data protection that HBAs have offered for over 20 years for SAS/SATA interfaces. Based on the singlecore SAS3516, SAS3416 or SAS3408 Tri-Mode Storage I/O controllers (IOC), these HBAs provide bandwidth and IOPS performance increase compared to the previous generation and are ideal for high-end servers utilizing internal storage or connecting to large-scale external storage enclosures.
Applications
o High-port count SAS/SATA/NVMe adapters for direct attached high connectivity applications
o Tri-Mode connectivity enabling maximum data center flexibility
o Flexible solutions for cloud computing
o External storage requiring high connectivity SAS/SATA interface for host or drive side connect
Key Features
o Tri-Mode Storage Interface Ports
--SFF-8680 Bay
--x1 SAS
-- x1 SATA
--x2 SAS (Multi Link)
--Two x1 SAS (Dual port using MPIO)
--SFF-8639 (U.2) Bay
-- x2, x4 NVMe
o Supports 12, 6, and 3Gb/s SAS and 6, 3Gb/s SATA data transfer rates
o Up to 8 storage interface PCIe links. Each link supporting x4 or x2 link widths up to 8.0 GT/s (PCIe Gen3) per lane
Ports
8 internal/8 external
Connectors
Two (x4) SFF-8643
Two (x4) SFF-8644
Storage Interface Support
SAS, SATA, NVMe (PCIe)
Max NVMe Direct Attach Devices
Two x4, Four x2 (internal only)
Max Devices Per Controller
SAS/SATA: 1024
NVMe: 24 (internal only)
I/O Processor / SAS Controller
SAS3516
Host Bus Type
PCIe 3.1 x8
Typical Power
12.39W
Cable Support
Passive Copper, Active Copper (external), Active Optical (external)
Operating Conditions
Operating: 10oC to 55oC, 20 to 80% non-condensing Airflow: 200 LFM Storage: -45oC to 105oC, 5 to 95% non-condensing
MTBF (Calculated)
>4,500,000 hours at 40oC
Operating Voltage
+12V +/-8%, 3.3V +/-9%
Regulatory Certifications
USA (FCC 47 CFR part 15 Subpart B, class B)
Canada (ICES -003, Class B)
Taiwan (CNS 13438)
Japan (VCCI V-3)
Australia/New Zealand (AS/NZS CISPR 22)
Korea (RRA no 2013-24 and 25)
Europe (EN55022/EN55024)
Safety: EN/IEC/UL 60950, RoHS, WEEE
OS Support
Microsoft Windows, Linux, VMware. Contact Oracle support for Oracle Solaris driver or software support.
Item Dimension (L inchxW inchxH inch)
11 x 6 x 2
Weight
1.00 lb
Warranty Information
3 Years
