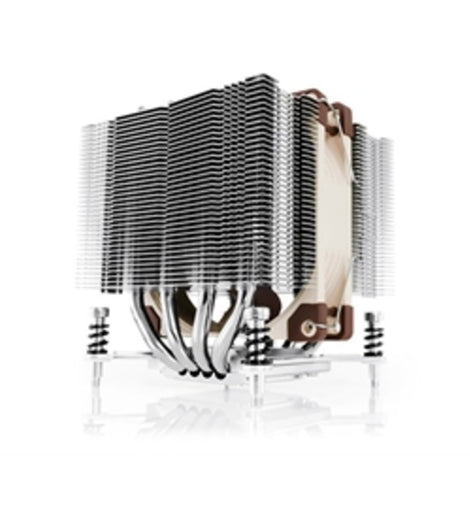

Noctua CPU Cooler NH-D9DX i4 3U S2011-0/2011-3 92x92x25mm SSO2-Bearing PWM Retail
3U compatibility
The NH-D9DX i4 stands only 110mm tall. This is 15mm less than previous 4U compliant 9cm DX-line coolers and allows the NH-D9DX i4 to also fit 3U cases - ideal for noise-sensitive 3U applications in fields such as audio or video processing!
100% RAM compatibility
With its 95x95mm footprint, the NH-D9DX i4 does not overhang the RAM slots on LGA2011 Square ILM, LGA1366 and LGA1356. This gives the user full access to the memory modules and guarantees 100% compatibility with tall heatspreaders or optional memory fans.
NF-A9 premium fan
The highly optimised NF-A9 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, which allows it to further improve the renowned efficiency of Noctua's previous 92mm models and contributes to the NH-D9DX i4' superior cooling performance.
PWM support and Low-Noise Adaptor
The NF-A9 92mm fan supplied with the NH-D9DX i4 supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 2000 to 1550rpm using the supplied Low-Noise Adaptor for even quieter operation.
Socket compatibility
Intel LGA2011-0 LGA2011-3 (Square ILM Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints nickel plating
Fan compatibility
92x92x25
Scope of Delivery
NF-A9 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2 Mounting Kit
Fan-clips for second NF-A9
Bearing
SSO2
Max. Rotational Speed (+/- 10%)
2000 RPM
Max. Rotational Speed with L.N.A. (+/- 10%)
1550 RPM
Min. Rotational Speed (PWM, +/-20%)
400 RPM
Max. Airflow
78,9 m3/h
Max. Airflow with L.N.A.
62,6 m3/h
Max. Acoustical Noise
22,8 dB(A)
Max. Acoustical Noise with L.N.A.
16,3 dB(A)
Input Power
1,2 W
Voltage Range
12 V
MTBF
> 150.000 h
Item Dimension (L inchxW inchxH inch)
3.74 x 3.74 x 4.33
Weight
1.17lb
Warranty Information
6 years
The NH-D9DX i4 stands only 110mm tall. This is 15mm less than previous 4U compliant 9cm DX-line coolers and allows the NH-D9DX i4 to also fit 3U cases - ideal for noise-sensitive 3U applications in fields such as audio or video processing!
100% RAM compatibility
With its 95x95mm footprint, the NH-D9DX i4 does not overhang the RAM slots on LGA2011 Square ILM, LGA1366 and LGA1356. This gives the user full access to the memory modules and guarantees 100% compatibility with tall heatspreaders or optional memory fans.
NF-A9 premium fan
The highly optimised NF-A9 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, which allows it to further improve the renowned efficiency of Noctua's previous 92mm models and contributes to the NH-D9DX i4' superior cooling performance.
PWM support and Low-Noise Adaptor
The NF-A9 92mm fan supplied with the NH-D9DX i4 supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 2000 to 1550rpm using the supplied Low-Noise Adaptor for even quieter operation.
Socket compatibility
Intel LGA2011-0 LGA2011-3 (Square ILM Narrow ILM), LGA1356, LGA1366 (wtih Xeon backplate)
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints nickel plating
Fan compatibility
92x92x25
Scope of Delivery
NF-A9 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2 Mounting Kit
Fan-clips for second NF-A9
Bearing
SSO2
Max. Rotational Speed (+/- 10%)
2000 RPM
Max. Rotational Speed with L.N.A. (+/- 10%)
1550 RPM
Min. Rotational Speed (PWM, +/-20%)
400 RPM
Max. Airflow
78,9 m3/h
Max. Airflow with L.N.A.
62,6 m3/h
Max. Acoustical Noise
22,8 dB(A)
Max. Acoustical Noise with L.N.A.
16,3 dB(A)
Input Power
1,2 W
Voltage Range
12 V
MTBF
> 150.000 h
Item Dimension (L inchxW inchxH inch)
3.74 x 3.74 x 4.33
Weight
1.17lb
Warranty Information
6 years
