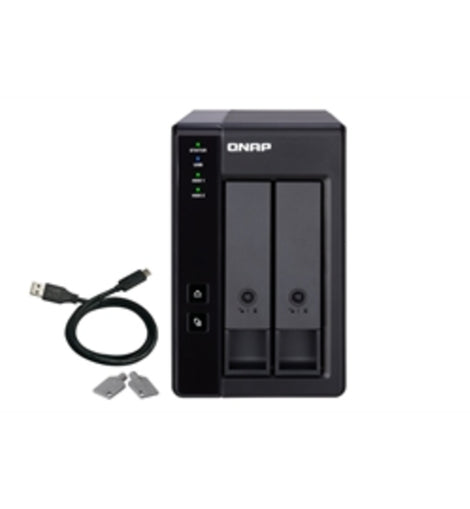

QNAP Storage Enclosure TR-002-US 2-bay 3.5" SATA HDD USB 3.1 Gen2 10Gbps type-C hardware RAID Retail
TR-002
2 Bay USB Type-C Direct Attached Storage with Hardware RAID
The TR-002 USB 3.1 Gen. 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.1 Gen. 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
Effective storage expansion with RAID Support
The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Supports various RAID levels
The TR-002 supports various RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0 or RAID 1. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Flexible storage configuration and management
Compared with other RAID enclosures, the TR-002 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage and Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
CPU
Micro processor with hardware RAID
Drive Bay
2 x 2.5-inch or 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
TR-002 does not support the QDA-A2AR/ QDA-A2MAR.
Hot-swappable
Yes
USB 3.0 port
1 x Type-C USB 3.1 Gen 2
Max. number of HDDs/SSDs supported
2
Hard Drive Type
2 x 2.5-inch or 3.5-inch SATA 6Gb/s
Operating temperature
0 - 40 oC (32oF - 104oF)
Relative Humidity
595% RH non-condensing, wet bulb: 27oC (80.6oF)
Power Supply Unit
External Power Adapter, 36W, 100-240V
Power Consumption: HDD Sleep Mode
2.98 W
Power Consumption: Operating Mode, Typical
10.15 W
With drives fully populated
Fan
1 x 70mm, 12VDC
Sound Level
17.8 db(A)
Kensington Security Slot
Yes
Item Dimension (L"xW"xH")
7 x 6 x 9
Weight
6.39 lbs
Warranty Information
2 Years
2 Bay USB Type-C Direct Attached Storage with Hardware RAID
The TR-002 USB 3.1 Gen. 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.1 Gen. 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
Effective storage expansion with RAID Support
The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Supports various RAID levels
The TR-002 supports various RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0 or RAID 1. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Flexible storage configuration and management
Compared with other RAID enclosures, the TR-002 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage and Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
CPU
Micro processor with hardware RAID
Drive Bay
2 x 2.5-inch or 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
TR-002 does not support the QDA-A2AR/ QDA-A2MAR.
Hot-swappable
Yes
USB 3.0 port
1 x Type-C USB 3.1 Gen 2
Max. number of HDDs/SSDs supported
2
Hard Drive Type
2 x 2.5-inch or 3.5-inch SATA 6Gb/s
Operating temperature
0 - 40 oC (32oF - 104oF)
Relative Humidity
595% RH non-condensing, wet bulb: 27oC (80.6oF)
Power Supply Unit
External Power Adapter, 36W, 100-240V
Power Consumption: HDD Sleep Mode
2.98 W
Power Consumption: Operating Mode, Typical
10.15 W
With drives fully populated
Fan
1 x 70mm, 12VDC
Sound Level
17.8 db(A)
Kensington Security Slot
Yes
Item Dimension (L"xW"xH")
7 x 6 x 9
Weight
6.39 lbs
Warranty Information
2 Years
