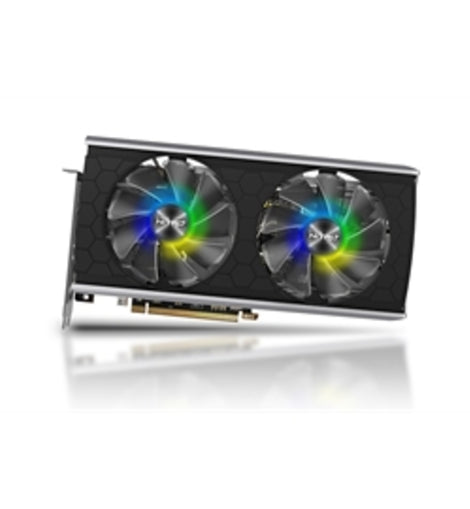

SAPPHIRE NITRO+ RX 5500 XT Special Edition

The SAPPHIRE NITRO+ RX 5500 XT Special Edition graphics card delivers a maximized 1080p gaming experience for the PC Gamer. The NITRO+ RX 5500 XT is packed with SAPPHIRE's renowned high-end quality components, with our efficient 95mm fans, Black Diamond Chokes and Shroud enhancements to strengthen the delivery of the incredible performance and stability that every gamer needs. Exciting features include the easily replaceable Quick Connect Fans working alongside Intelligent Fan Control and Dual-X Fan Cooling to dissipate heat with low noise and high reliability. Incredibly aesthetic ARGB fan and shroud lighting create a beautiful addition to your gaming rig which can be customized through our TriXX Software. Use our new TriXX Boost feature to amp up the performance of your favourite games to secure that top spot over your friends while gaming. Get NITRO Charged with the SAPPHIRE NITRO+ RX 5500 XT Special Edition!

SAPPHIRE NITRO+ Graphics Card FEATURES

Explore all the incredible features that come with the SAPPHIRE NITRO+ RX 5500 XT Special Edition Graphics Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you

COOLTECH

Our superior cooling technology to keep your temperatures low at a high framerate

oIntelligent Fan Control

oPrecision Fan Control

oRobust VRM Cooling

oRobust Memory Cooling

oDual-X Cooling Technology

DNA

Our core parts that elevate the life of our products through quality, robustness and reliability

oBackplate (Tough Metal Backplate)

oTwo-Ball Bearing

oFan Quick Connect

oFuse Protection

oBlack Diamond Choke

oDual BIOS


GPU
Radeon RX 5500 Graphics
2nd Gen 7nm GPU
RDNA Architecture
Engine Clock
Boost Clock: Up to 1845MHz
Game Clock: Up to 1737 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
1408
Memory Size/Bus
8GB/128 bit GDDR6
Memory Clock
14.4 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI: 4096x2160 at 60Hz
DisplayPort1.4: 5120x2880 at 60Hz
Interface
PCI-Express 4.0
Output
2x HDMI
2x DisplayPort
BIOS Support
Dual UEFI
API
Vulkan
OpenGL 4.6
OpenCL 2.0
DirectX 12
Shader Model 6.4
Game Index
Extreme 1080P
Sapphire Features
TriXX Supported
TriXX Boost
Software BIOS Switch
Max Boost
Power Design
Optional Fan Glow ARGB support
NITRO Glow
ARGB Audio Visualization
Fan Check
Free Flow
VR Friendly
Intelligent Fan Control
Precision fan control
Robust VRM Cooling
Robust Memory Cooling
Dual-X Cooling Technology
Backplate (Tough Metal Backplate)
Two-Ball Bearing
Fan Quick Connect
Fuse Protection
Black Diamond Choke
Dual BIOS
AMD Features
RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI Express 4.0 Support
Video Streaming up to 8K
Display Port 1.4 (HBR3) / DSC
Radeon Software
Radeon Boost
Radeon Image Sharpening
Radeon Anti-Lag
AMD FidelityFx
Async Compute
Radeon Rays Audio + True Audio Next
Radeon FreeSync 2 HDR
Radeon VR Ready Premium
Cooling
Dual-X Cooling
Dual Fan
Two-Ball Bearing
Form Factor
2.2 slot, ATX
Dimension: 257 x 132.8 x 44.2 (mm)
Power Consumption
135W
OS
Linux, Windows 10, Windows 7
64bit operating system required
System Requirement
Recommended 500 Watt Power Supply (Minimum 450 Watt Power Supply).
1 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 4GB of system memory. 8GB recommended.
Item Dimension (L"xW"xH")
13 x 9 x 3

Weight
3 lbs

Warranty Information
NA
