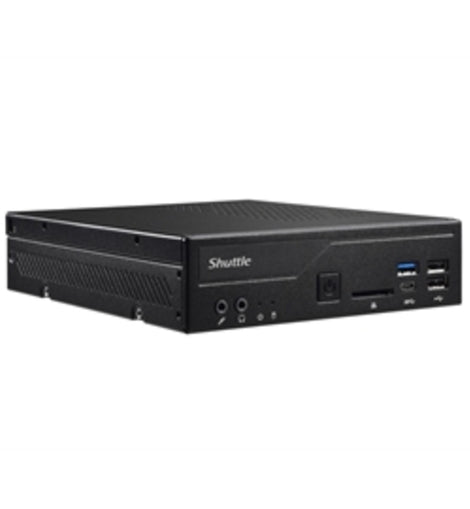

Shuttle System DH310S XPC Slim 1.3L Intel H310C SP 65 Watts Coffee Lake CPU S1151 32GB Retail
Affordable 1-litre Slim PC for powerful Coffee Lake processors
The Shuttle XPC slim Barebone DH310S is a robust 1.3l Barebone PC with H310 chipset for Intel LGA1151v2 desktop processors, code-named "Coffee Lake". It allows for two digital displays to be operated at the same time and supports up to 32 GB DDR4 SO-DIMM memory. Its slim metal chassis provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 oC. This platform is targeted at applications such as office, healthcare, Digital Signage, POS, and industry.
Chassis
Slim PC with black chassis made of metal
Two holes for Kensington Locks and numerous threaded holes (M3) at both sides of the chassis
Power Adapter
External 90 W power adapter (fanless)
Input: 100-240 V AC, 50/60 Hz
Output: 19 V DC, 4.74 A, max. 90 W
DC Connector: 5.5/2.5 mm (outer/inner diameter)
Operating System
This system comes without operating system.
It is compatible with Windows 10 and Linux (64-bit)
Processor support
Processor Socket LGA 1151v2
Supports Intel Core i7 / i5 / i3, Pentium Gold and Celeron processors
Supports the 8th generation Intel Core processors, codename "Coffee Lake-S" in 14++ nm process technology
Maximum supported processor power consumption (TDP) is 65 W
Up to 6 CPU cores, 12 threads and 12 MB of L3 cache
Does not support the unlock-function of Intel K-Series processors.
Not compatible with older Socket LGA 1151 processors (6th Gen. "Skylake" and 7th Gen. "Kaby Lake").
The processor integrates PCI-Express, memory controller and the graphics engine on the same die (performance features depending on processor type)
Please refer to the support list for detailed processor support information at global.shuttle.com.
Processor cooling
Heat-pipe processor cooling with two 60 mm fans on the upper side of the chassis
Mainboard / Chipset
Shuttle mainboard FS310S, Shuttle form factor, proprietary design for XPC DH310S
Chipset/Southbridge: Intel H310
Passive chipset cooling with heat sink
The Northbridge is integrated in the processor.
Solid Capacitors for sensitive areas provide excellent heat resistance for enhanced system durability
BIOS
AMI BIOS, SPI Interface, 16 MB Flash-EPROOM
Supports Hardware Monitoring and watch dog functionality
Supports Firmware-TPM (fTPM) v2.0
Supports boot up from external USB flash memory
Supports Unified Extensible Firmware Interface (UEFI)
Supports power on after power failure
Memory support
2x SO-DIMM slot with 260 pins
Supports DDR4-2400/2666 (PC4-19200/21300) SDRAM at 1.2 V
Supports Dual Channel mode
Supports a maximum of 16 GB per DIMM,
maximum total size: 32 GB
Supports two unbuffered DIMM modules (no ECC or registered)
Integrated Graphics
The features of the integrated Intel UHD graphics function depend on the processor type used.
Supports DirectX 12, OpenGL 4.5
The PC features two digital video outputs:
- 1x HDMI v1.4b supports 1080p/60 and 2160p/30
- 1x DisplayPort v1.2 supports 1080p/60 and 2160p/60
Supports displays with 4K Ultra HD resolution at 3840 x 2160
Supports two independent displays with the integrated graphics function
Supports Blu-ray (BD) playback with HDCP content protection
Hardware video decoding/encoding: H.264, H. 265 (8- and 10-bit, encoding via QuickSync), VP9 (10-bit VP9 can only be decoded)
DisplayPort and HDMI support multi-channel digital audio over the same cable.
Shared Memory max. 512 MB
Optional analog D-Sub/VGA video output (Accessory PVG01)
Storage bay
1x 6.35 cm / 2.5" storage bay supports one hard disk or SSD drive with SATA connector
Device height: 12.5 mm (max.)
SATA connectors
1x Serial-ATA III, 6 Gb/s (600 MB/s) bandwidth
With Serial-ATA power connector (onboard)
M.2-2280M SSD slot
The M.2 2280M slot provides the following interfaces:
- PCI-Express Gen. 2.0 X4, supports NVMe
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 42, 60 or 80 mm (type 2242, 2260, 2280).
Supports M.2 SSDs with SATA or PCI-Express interface
M.2-2230E slot for WLAN cards
Interfaces: PCI-Express Gen. 2.0 X1 und USB 2.0
Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
Supports WLAN extension cards (optional Shuttle accessory: WLN-M)
Audio
Audio Realtek ALC 662 5.1 channel High-Definition Audio
Two analog audio connectors (3.5mm) at the front panel:
1) 2-channel line-out (head-phones)
2) microphone input
Digital multi-channel audio output: by HDMI and DisplayPort
Gigabit LAN Controller
Realtek 8111H Ethernet network controller (Gigabit)
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL)
Supports network boot by Preboot eXecution Environment (PXE)
Card Reader
Integrated card reader
Supports SD, SDHC and SDXC up to v3.01 memory flash cards
UHS-I interface supports up to 104 MB/s (SDR104) transfer speed
Realtek RTS5227S chip with PCIe chipset interface
Supports boot up from SD card
Front Panel connectors
Microphone input
Audio Line-out (headphones)
1x USB 3.1 Gen 1
1x USB 3.1 Gen 1 Type C
2x USB 2.0
SD card reader
Power button
Power LED (blue)
HDD LED (yellow)
Back Panel connectors
1x HDMI 1.4b connector
1x DisplayPort 1.2 connector (DP)
Optional: 1x D-Sub VGA connector (Accessory PVG01)
2x USB 3.1 Gen 1
2x USB 2.0
1x Gigabit LAN (RJ45)
1x DC-input connector for external power adapter
1x 4-pin connector (2.54 mm pitch) supports:
- external power on button
- Clear CMOS function
- +5V DC voltage for external components
2x Perforation for optional Wireless LAN antennas
2x hole for Kensington Locks
Other onboard connectors
1x jumper JP2 for power-on-after-power-fail (hardware solution)
1x analog VGA graphics output CN6 (2x 1-pin, 1 mm pitch)
1x USB 2.0 (4-pin)
1x fan connector (4-pin) occupied by the cooling system
1x connector for CMOS battery (occupied)
Supplied Accessories
Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC)
Four screws M3 x 4 mm (to mount a 2.5" storage device into the bay)
Two screws M3 x 5 mm (silver colour, to mount two M.2 cards)
Driver DVD (Windows 64-bit)
Serial ATA cable for 2.5" drive including power cable
External 90 W power adapter with power cord
Protection cap for CPU socket (do not use if heatpipe or fan is mounted)
Heatsink compound
