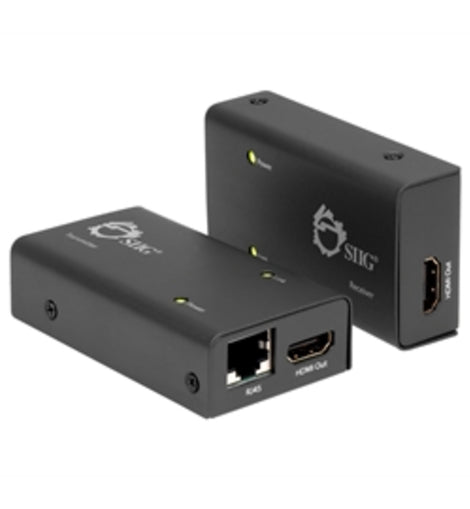

SIIG Accessory CE-H22E11-S1 196ft HDMI Extender Cat5e/6 with Extra HDMI Output Brown Box
Description
SIIG's HDMI Extender over single Cat5e/6 with extra HDMI output - 196ft enables you to extend HDMI signals from an HDMI source such as DVD player, game console, or HDMI-equipped computer to an HDMI display at a remote location. It transmits high definition video and high quality audio at a great distance of up to 196ft using economical Cat5e/6 networking cable. Full HD 1080p resolution and 3D are supported and no software installation is required. In addition, this extender provides an HDMI output for connecting a local HDMI display to monitor and ensure high-definition digital signals are transmitted to the remote location. It is a cost-effective HDMI extender to broadcast HDMI signal to a distant display utilizing affordable network cable, great for home theater, conference room and many more digital signage applications.
Features
o Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 196ft via Cat5e/6 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
o Built-in HDMI output on the transmitter allows for local monitoring of the extended display
o Delivers high-quality video/audio transmission without compression for optimal performance, supports video resolution up to 1080p (Full HD) and 3D
o Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
o Plug-n-Play installation, no software installation or hardware setup is required
HDMI and HDCP compatible
Supported resolutions
480p/720p/1080i/1080p
Transmission distance
up to 196ft (60m)
HDMI cable distance
up to 2M (Input and output)
Housing
Metal
Transmitting unit (TX)
Input: 1x 19-pin HDMI, Type A, Female
Output:
- 1x 8-pin, RJ45Transmitting unit (TX)
Input: 1x 19-pin HDMI, Type A, Female
Output:
- 1x 8-pin, RJ45
- 1x 19-pin HDMI, Type A, Female
Receiving unit (RX)
Input: 1x 8-Pin, RJ45
Output: 1x 19-pin, HDMI, Type A, Female
Power adapter
Input: 100-240VAC
Output: 5V DC, 1A
Operating temperature
32 to 122 degrees F
Storage temperature
-4 to 140 degrees F
Relative humidity
< 80% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Package Contents
HDMI Extender over single Cat5e/6 - 196ft (TX and RX units)
Power adapter (2)
User Reference Guide
Item Dimension (L inchxW inchxH inch)
3 x 8 x 6
Weight
1.00 lb
Warranty Information
2 years
