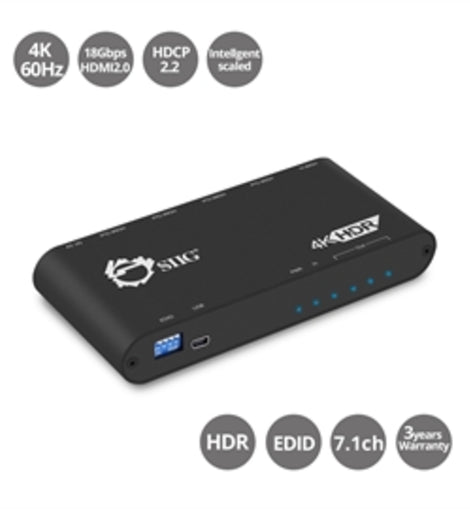

SIIG Accessory CE-H22Y11-S1 HDMI Distribution Amplifier with Auto Video Scaling 4K 60Hz HDR Brown Box
Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
Supports up to 4K at 60Hz (YUV 4:4:4 8-bit), HDR 4K at 60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color and Deep Color
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations
EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
Easy to cascade multiple splitters for more displays. Supports up to 10 layers
Notes:
Below are limitations associated with 4K content down scaling:
- Down scaling to 720p and 480p is not supported
- YUV 4:2:2 down scaling is not supported
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
- 4K at 30Hz monitors will display in 1080p at 60Hz when the source content is 4K at 60Hz
- The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
Chipset
ITE-IT6664
HDMI 2.0a compliant
HDCP 2.2 compliant
Supports 4Kx2K at 60Hz (YUV 4:4:4 8bit)
Supports HDR 4Kx2K at 60Hz (YUV 4:2:0 10bit)
Supports xvYCC, x.v.Color and Deep Color
Video Bandwidth
18Gbps (single-link 600MHz)
Frequency Range
25MHz - 600MHz
Supports resolution down scaling from 4K to 1080p. See Notes below for limitations
Maximum Resolution
3840x2160 at 60Hz (YUV 4:4:4)
HDR 3840x2160 at 60Hz (YUV 4:2:0)
Display Mode
Mirror
Supports embedded EDID and EDID learning via DIP switch
Audio Support
DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD Protection
+/- 15kV Air / +/-8kV Contact
Supports cascading of multiple splitters for adding more displays, supports up to 10 layers
Built-in firmware update mechanism (via Mini USB port) for expanding compatibility
Sturdy metal housing provides durability and reduces EMI/RFI noise interference
Product
Color: Black
Housing Material
Aluminum
Transmission Distance (HDMI cable)
4K at 60Hz: Up to 10m (5m/In 5m/Out)
1080p at 60Hz and 4K at 30Hz: Up to 15m (5m/In 10m/Out)
Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
Supports up to 4K at 60Hz (YUV 4:4:4 8-bit), HDR 4K at 60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color and Deep Color
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations
EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
Easy to cascade multiple splitters for more displays. Supports up to 10 layers
Notes:
Below are limitations associated with 4K content down scaling:
- Down scaling to 720p and 480p is not supported
- YUV 4:2:2 down scaling is not supported
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
- 4K at 30Hz monitors will display in 1080p at 60Hz when the source content is 4K at 60Hz
- The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
Chipset
ITE-IT6664
HDMI 2.0a compliant
HDCP 2.2 compliant
Supports 4Kx2K at 60Hz (YUV 4:4:4 8bit)
Supports HDR 4Kx2K at 60Hz (YUV 4:2:0 10bit)
Supports xvYCC, x.v.Color and Deep Color
Video Bandwidth
18Gbps (single-link 600MHz)
Frequency Range
25MHz - 600MHz
Supports resolution down scaling from 4K to 1080p. See Notes below for limitations
Maximum Resolution
3840x2160 at 60Hz (YUV 4:4:4)
HDR 3840x2160 at 60Hz (YUV 4:2:0)
Display Mode
Mirror
Supports embedded EDID and EDID learning via DIP switch
Audio Support
DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD Protection
+/- 15kV Air / +/-8kV Contact
Supports cascading of multiple splitters for adding more displays, supports up to 10 layers
Built-in firmware update mechanism (via Mini USB port) for expanding compatibility
Sturdy metal housing provides durability and reduces EMI/RFI noise interference
Product
Color: Black
Housing Material
Aluminum
Transmission Distance (HDMI cable)
4K at 60Hz: Up to 10m (5m/In 5m/Out)
1080p at 60Hz and 4K at 30Hz: Up to 15m (5m/In 10m/Out)
