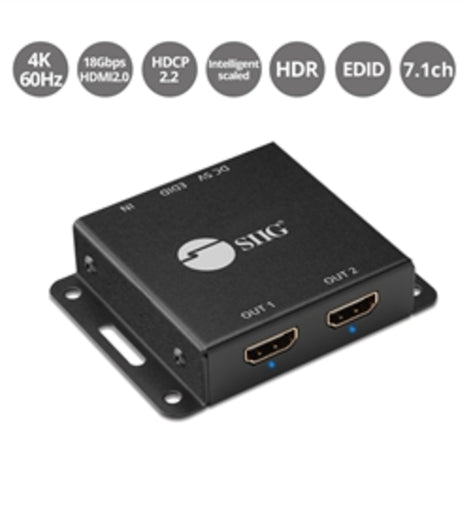

SIIG Accessory CE-H23K11-S1 2 ports HDMI2.0 HDR Mini Splitter Amplifier with EDID Management Brown Box
2-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
Portable design distributes HDMI video/audio signals from one HDMI source to two HDMI displays while maintaining signal quality
?Distributes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously while maintaining signal quality
?Compliant with HDMI 2.0 and HDCP 2.2
?Supports 18Gbps bandwidth
?Supports up to 4K (3840x2160) @60Hz (YUV 4:4:4 8-bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color and Deep Color
?Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
?Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
?Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations
?EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
?Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
*Notes:
- Down scaling to 720p and 480p is not supported
- YUV 4:2:2 down scaling is not supported
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
- 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
- The Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
- Chip:
IT6663FN
- Compliant with HDMI 2.0, HDCP 2.2
- Supports xvYCC, x.v.Color and Deep Color
- Supports 3840x2160 at 60Hz, YUV 4:4:4, 8bit
- Supports 3840x2160 at 60Hz HDR, YUV 4:2:0, 10bit
- Video bandwidth:
18Gbps (single-link 600MHz)
- Resolution support:
480p/720p/1080i/1080p/2160p at 60Hz, 4K HDR
- HDMI cable length:
3840x2160 at 60Hz: up to 10m (5m/In, 5m/Out)
1080p and 3840x2160 at 30Hz: up to 15m (5m/In, 10m/Out)
- Supports default EDID and EDID learning from display
- Built-in Micro USB port for power or firmware update
- Audio support:
Dolby Digital, DTS-HD and Dolby TrueHD audio
- LED indication for power and signal status
- ESD protection:
+/- 15kV Air
+/- 8kV Contact
- Product:
Color: Black
Housing material: Metal
Connector:
-1x 19-Pin, HDMI, Type A, Female, Input
-2x 19-Pin, HDMI, Type A, Female, Output
-1x 5-Pin, Micro-USB, Female, Power / Firmware update
-1x 2-Pin, Switch, EDID Management
- Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
- Certifications/Standards:
FCC, CE, RoHS
- TAA compliant
Item Dimension(L inchxW inchxH inch)
6 x 5 x 1
Weight
1.00lb
Warranty Information
3 years
Portable design distributes HDMI video/audio signals from one HDMI source to two HDMI displays while maintaining signal quality
?Distributes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously while maintaining signal quality
?Compliant with HDMI 2.0 and HDCP 2.2
?Supports 18Gbps bandwidth
?Supports up to 4K (3840x2160) @60Hz (YUV 4:4:4 8-bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color and Deep Color
?Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
?Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
?Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations
?EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
?Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
*Notes:
- Down scaling to 720p and 480p is not supported
- YUV 4:2:2 down scaling is not supported
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
- 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
- The Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
- Chip:
IT6663FN
- Compliant with HDMI 2.0, HDCP 2.2
- Supports xvYCC, x.v.Color and Deep Color
- Supports 3840x2160 at 60Hz, YUV 4:4:4, 8bit
- Supports 3840x2160 at 60Hz HDR, YUV 4:2:0, 10bit
- Video bandwidth:
18Gbps (single-link 600MHz)
- Resolution support:
480p/720p/1080i/1080p/2160p at 60Hz, 4K HDR
- HDMI cable length:
3840x2160 at 60Hz: up to 10m (5m/In, 5m/Out)
1080p and 3840x2160 at 30Hz: up to 15m (5m/In, 10m/Out)
- Supports default EDID and EDID learning from display
- Built-in Micro USB port for power or firmware update
- Audio support:
Dolby Digital, DTS-HD and Dolby TrueHD audio
- LED indication for power and signal status
- ESD protection:
+/- 15kV Air
+/- 8kV Contact
- Product:
Color: Black
Housing material: Metal
Connector:
-1x 19-Pin, HDMI, Type A, Female, Input
-2x 19-Pin, HDMI, Type A, Female, Output
-1x 5-Pin, Micro-USB, Female, Power / Firmware update
-1x 2-Pin, Switch, EDID Management
- Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
- Certifications/Standards:
FCC, CE, RoHS
- TAA compliant
Item Dimension(L inchxW inchxH inch)
6 x 5 x 1
Weight
1.00lb
Warranty Information
3 years
