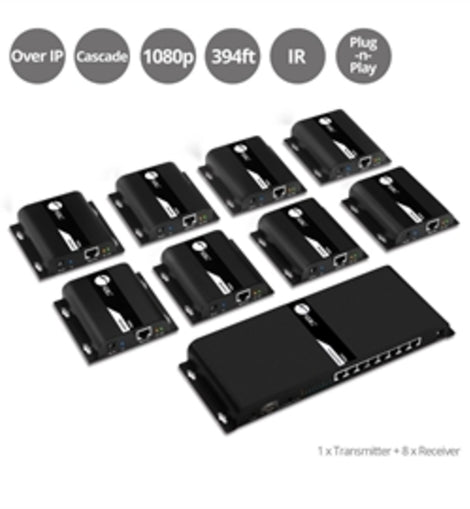

SIIG Accessory CE-H25G11-S1 1x8HDMI Splitter HDbitT over IP Extender - 120m Brown Box
o Extends HDMI signals up to 120m (394ft) over economical Cat6 cabling to up to 8 displays
o Features Cascade connection extends HDMI signal through unmanaged Gigabit network routers or switches, With HDBitT(R) transport protocol, you can not only extend but split HDMI signals to additional displays
Note: Additional receivers, HDMI Extender over CAT6 with IR - Receiver, part # CE-H23U11-S1, sold separately
o Delivers crystal clear Full HD content up to 1080p@60Hz resolution
o IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location
o High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
o Plug-n-Play installation, no software installation required
Transport protocol:
HDbitT
Transmission distance:
Up to 120m (394ft) via single Cat6 cable at 1080p 60Hz
Audio:
7.1 channel, PCM, DTS, AC3 audio
Full frequency IR signal from 20KHz to 60KHz
Video resolution:
480p / 720p / 1080i / 1080p at 60Hz
Product housing:
TX Metal and RX Aluminum with wall mount design
Network cable:
UTP/STP Cat6/6a/7
Connection methods:
1x4: Direct connection
Cascade: 1-to-Multiple through IGMP Gigabit network routers or switches
Product:
Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 3.5mm jack, IR, Output
8x 8-pin, RJ45, HDbitT signal, Output
1x Power jack, 5V/2A
1x Reset button
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR, Input
1x 8-pin, RJ45, HDbitT signal, Input
1x Power jack, 5V/1A
1x Reset button
Power adapter:
Input: 100-240V / 50-60Hz
TX: DC 5V/2A
RX: DC 5V/1A
UL listed: E335801 / Level: VI
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 0 to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
12 x 2 x 5
Weight
1.83 LB
Warranty Information
2 years
