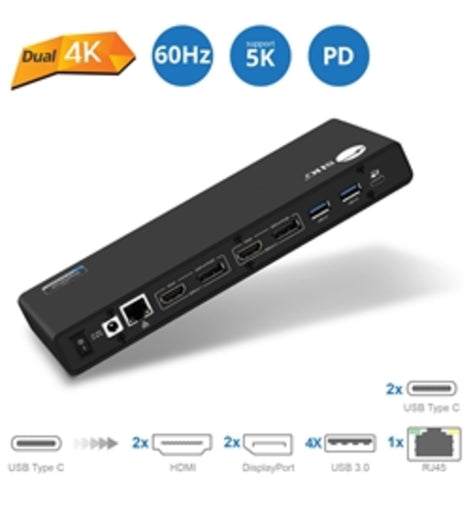

SIIG Accessory JU-DK0811-S1 USB3.1 Type-C Dual 4K Docking Station with Power Delivery Brown Box
o Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer
o Industry Recognized Display Technology from DisplayLink(R) - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor
o Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
o USB-C PD Charging - Supports up to 60W power output to charge your laptop
Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology
o Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
o Two Fast Charging USB-C ports: Compatible with USB Battery Charge Specification 1.2 (BC 1.2) with up to 5V/1.5A power output, fast charges most portable devices
o Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
o Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
o Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
o OS Compatibility - Supports various Windows and Mac* computers
*Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier.
Chipset: DisplayLink 6590 + FL5002 + GL3523
Compliant with Universal Serial Bus 3.1 Gen 1 Specification and backward compatible with USB 2.0
Integrated DP 1.2/DP++ interface
Integrated HDMI 2.0 interface
Support 5.1 channel surround sound through DisplayPort and HDMI
Supports USB 3.1 Gen 1 data transfer rate up to 5Gbps
USB Power Delivery up to 60W
Compatible with USB Battery Charge 1.2 (BC 1.2) specification (5V/1.5A output max) on USB-C downstream ports
Supported video cable length:
HDMI: Up to 5M (max)
DisplayPort: Up to 3M (max)
Resolution:
Support resolution up to 5K / 4K / 1080p / 1080i / 720p / 480p
Dual 3840x2160 at 60Hz (4K) through DP + HDMI, HDMI + HDMI, or DP + DP outputs
Single 5120x2880 at 60Hz through dual DisplayPort connection
Note: In order to support 5K output, you must connect both DisplayPort outputs to a single 5K DisplayPort TV/Monitor
Gigabit Ethernet:
Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correction
Connectors:
1x 24-pin, USB-C, Female, Input, PD charging
4x 9-pin, USB 3.1 Gen 1, Type-A, Female, standard downstream port
2x 24-pin, USB 3.1 Gen 1, Type-C, Female, data downstream port with BC 1.2 charging
2x 20-pin, DisplayPort, Female, Output
2x 19-pin, HDMI Type-A, Female, Output
1x 8-pin, RJ45, Gigabit Network, Female, Output
1x 3.5mm, Stereo audio, Output
1x 3.5mm, Mic, Input
Color:
Black
Housing material:
ABS
Power Adapter:
Input: AC 100-240V/50-60Hz
Output: DC 20V/5A
Environmental Conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. Its recommended to stay with 10.13.3 or earlier.
Item Dimension (L inchxW inchxH inch)
6 x 11 x 4
Weight
2.93lb
Warranty Information
2 Years
o Industry Recognized Display Technology from DisplayLink(R) - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor
o Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
o USB-C PD Charging - Supports up to 60W power output to charge your laptop
Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology
o Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
o Two Fast Charging USB-C ports: Compatible with USB Battery Charge Specification 1.2 (BC 1.2) with up to 5V/1.5A power output, fast charges most portable devices
o Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
o Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
o Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
o OS Compatibility - Supports various Windows and Mac* computers
*Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier.
Chipset: DisplayLink 6590 + FL5002 + GL3523
Compliant with Universal Serial Bus 3.1 Gen 1 Specification and backward compatible with USB 2.0
Integrated DP 1.2/DP++ interface
Integrated HDMI 2.0 interface
Support 5.1 channel surround sound through DisplayPort and HDMI
Supports USB 3.1 Gen 1 data transfer rate up to 5Gbps
USB Power Delivery up to 60W
Compatible with USB Battery Charge 1.2 (BC 1.2) specification (5V/1.5A output max) on USB-C downstream ports
Supported video cable length:
HDMI: Up to 5M (max)
DisplayPort: Up to 3M (max)
Resolution:
Support resolution up to 5K / 4K / 1080p / 1080i / 720p / 480p
Dual 3840x2160 at 60Hz (4K) through DP + HDMI, HDMI + HDMI, or DP + DP outputs
Single 5120x2880 at 60Hz through dual DisplayPort connection
Note: In order to support 5K output, you must connect both DisplayPort outputs to a single 5K DisplayPort TV/Monitor
Gigabit Ethernet:
Supports up to 1000 Mbps data transfer rate and is backward compatible with 10/100 Mbps
Supports IEEE 802.3x full duplex operation
Compatible with IEEE 802.3, 802.3u
Supports crossover detection and auto-correction
Connectors:
1x 24-pin, USB-C, Female, Input, PD charging
4x 9-pin, USB 3.1 Gen 1, Type-A, Female, standard downstream port
2x 24-pin, USB 3.1 Gen 1, Type-C, Female, data downstream port with BC 1.2 charging
2x 20-pin, DisplayPort, Female, Output
2x 19-pin, HDMI Type-A, Female, Output
1x 8-pin, RJ45, Gigabit Network, Female, Output
1x 3.5mm, Stereo audio, Output
1x 3.5mm, Mic, Input
Color:
Black
Housing material:
ABS
Power Adapter:
Input: AC 100-240V/50-60Hz
Output: DC 20V/5A
Environmental Conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. Its recommended to stay with 10.13.3 or earlier.
Item Dimension (L inchxW inchxH inch)
6 x 11 x 4
Weight
2.93lb
Warranty Information
2 Years
