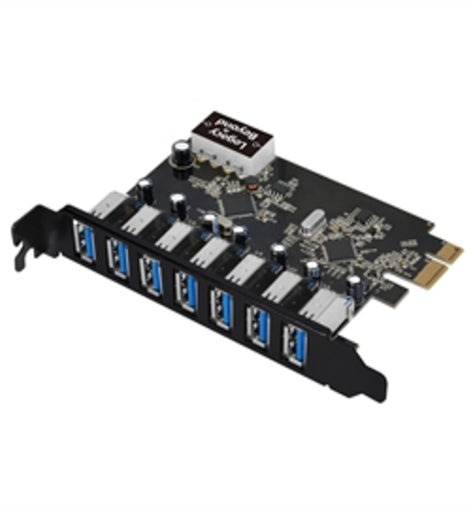

SIIG Accessory LB-US0514-S1 USB 3.0 7-Port Ext PCIe Host Adapter Brown Box
SIIGs USB 3.0 7-Port (Ext) PCIe Host Card allows you to add seven SuperSpeed USB 3.0 external ports to your desktop computer via a PCI Express slot to enhance your systems USB connectivity performance. It supports 5Gb/s ultra-fast USB 3.0 data transfer rate and provides up to 900mA power output per port with over-current protection to ensure smooth and reliable data transmission. This is a great USB port expansion solution to enable a variety of external device connections for maximum productivity.
Features
Quickly adds seven external USB 3.0 ports through an available PCI Express slot for connecting a variety of external USB devices
Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs
Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices
Multi-port feature allows connecting several existing peripheral devices simultaneously and avoids frequent plug in and plug out
Chipset
VIA VL805 + VL813
Compliant with USB 3.0 Specification
Bus connector
PCI Express 1x
Version
PCI Express 2.0
Data transfer rate
Up to 5Gbps
USB power output
Up to 900mA
Connectors
External: 7 x 9-pin USB 3.0 Type A, Female
Internal: 1 x 4-pin Molex power connector (required)
Color: Black
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L"xW"xH")
8 x 6 x 2
Weight
1 lb
Warranty Information
1 Year
Features
Quickly adds seven external USB 3.0 ports through an available PCI Express slot for connecting a variety of external USB devices
Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs
Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices
Multi-port feature allows connecting several existing peripheral devices simultaneously and avoids frequent plug in and plug out
Chipset
VIA VL805 + VL813
Compliant with USB 3.0 Specification
Bus connector
PCI Express 1x
Version
PCI Express 2.0
Data transfer rate
Up to 5Gbps
USB power output
Up to 900mA
Connectors
External: 7 x 9-pin USB 3.0 Type A, Female
Internal: 1 x 4-pin Molex power connector (required)
Color: Black
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Item Dimension (L"xW"xH")
8 x 6 x 2
Weight
1 lb
Warranty Information
1 Year
