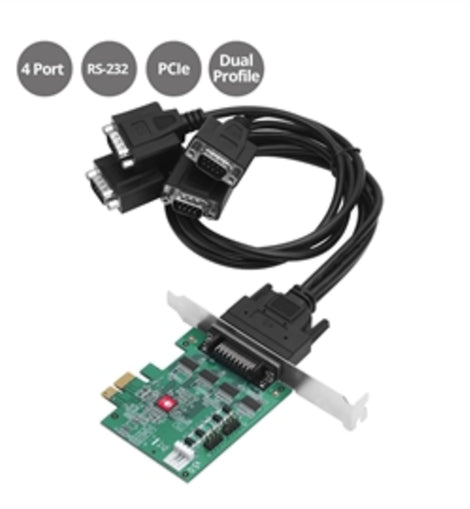

SIIG IO JJ-E40011-S5 DP CyberSerial 4S PCI Express 4xRS-232 serial ports Brown Box
Note: Replaces part # JJ-E40011-S4
o Easily adds four RS232 DB9 serial ports through an available PCI Express slot
o PCI Express 1-lane (x1) adapter works with any width PCI Express slot
o Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps
o Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment
o Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup
o Supports hardware and software flow control, 5, 6, 7, 8 and 9-bit serial format
o Onboard power connector provides reliable power source for devices that require power
o Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets
Chipset:
ASIX MCS99100
Compliant with PCI Express Base Specification 2.0
Supports PCIe Power Management
Data transfer rate: Up to 921Kbps
Flow control:
Hardware and Software
Stop bits:
5, 6, 7, 8 and 9-bit serial format
On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Serial power output: 0V / 5V / 12V, configured by jumper
Form factor:
Full profile / Low profile
Product:
Color: Green
Connectors:
4 x 9-pin D-sub, RS232 serial, Male (via fan-out cable)
1 x 4-pin, Molex mini power connector
2 x 8-pin header, jumper for power output
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
4 x 1 x 5
Weight
1.00 LB
Warranty Information
3 years
o Easily adds four RS232 DB9 serial ports through an available PCI Express slot
o PCI Express 1-lane (x1) adapter works with any width PCI Express slot
o Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps
o Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment
o Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup
o Supports hardware and software flow control, 5, 6, 7, 8 and 9-bit serial format
o Onboard power connector provides reliable power source for devices that require power
o Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets
Chipset:
ASIX MCS99100
Compliant with PCI Express Base Specification 2.0
Supports PCIe Power Management
Data transfer rate: Up to 921Kbps
Flow control:
Hardware and Software
Stop bits:
5, 6, 7, 8 and 9-bit serial format
On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Serial power output: 0V / 5V / 12V, configured by jumper
Form factor:
Full profile / Low profile
Product:
Color: Green
Connectors:
4 x 9-pin D-sub, RS232 serial, Male (via fan-out cable)
1 x 4-pin, Molex mini power connector
2 x 8-pin header, jumper for power output
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"xW"xH")
4 x 1 x 5
Weight
1.00 LB
Warranty Information
3 years
