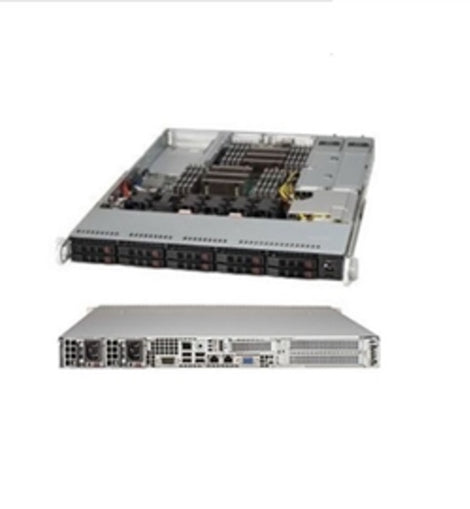

Supermicro Case CSE-116TQ-R706WB 1U 10x2.5 inch HS SAS2/SATA3 700/750W Brown Box
Key Features
o700W/750W redundant Platinum Level (PWS-706) or Gold level (PWS-704) high-efficiency power supplies
o10x 2.5" Hot-swap SAS2/ SATA3 Drive Bays
o4x 4cm Counter-rotating PWM fans
o2x Full-height I/O Expansion slots and 1x Low-profile I/O Expansion slot
oSupports maximum motherboard size 12" x 13"
oOptimized for WIO motherboards
o2x Front USB 3.0
Form Factor
1U chassis for motherboard support size of 12" x 13"
Optimized for WIO (W series) motherboards
Processor Support
Supports dual, single Intel / AMD processors
Expansion Slots
Without Universal I/O (UIO) Card:
2 full-height full-length expansion slot(s)
1 low-profile expansion slot(s)
Drive Bays
Internal Bay
10x 2.5" hot-swap SAS/SATA drive bay
SAS or enterprise SATA HDD only recommended
Backplane
BPN-SAS-116TQ: 10x2.5 Hot-swap SAS/SATA HDD
Front Panel
Buttons:
Power On/Off button
Unit Identification (UID) button
LEDs:
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Motherboard (for CSE-116TQ-R706WB )
X10DRW-i, X10DRW-iT
Server(s) for SC116TQ-R706WB
1028R-WC1RT, 1028R-WTNRT, 1028R-WTNR, 1028R-WTR
Fans
4x 40x56mm counter-rotation PWM fan (Opt. 2x fans for AOC cooling)
System Monitoring
Chassis intrusion switch
Operating Temperature Range
5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range
-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 700/750W Single Output Power Supply Platinum level, 54.5mm width
AC Voltage
700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp
750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp
DC Output +5V standby
3 Amp
DC Output +12V
700W: 58 Amp 100-140V
750W: 62 Amp 180-240V
With Power Distributor
+5V: 25 Amp
+3.3V: 12 Amp
-12V: 0.6 Amp
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
Item Dimension ( L inchxW inchxH inch)
NA
Weight
35 lb
Warranty Information
1 year
