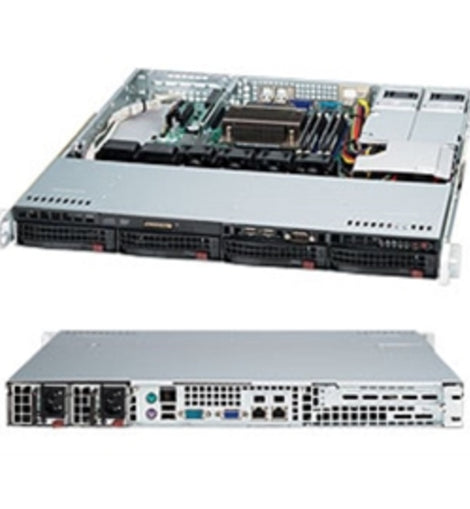

Supermicro Case CSE-813MFTQC-R407CB 1U 4x3.5 inch Hot-swap SAS/SATA 400W 4x4cm Fan Retail
Key Features
1.1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
2.4 x 3.5" hot-swap SAS/SATA
3.4-port 1U SAS3 12Gbps TQ backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
4.1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
5.Up to , 1 full-height and full-length expansion slot(s)
6.4 x 40x28mm PWM fan(s)
Form Factor
1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
Processor Support
Dual and Single Intel and AMD processors
Available Color
Black
Expansion Slots
1 full-height and full-length expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA
Backplane
4-port 1U SAS3 12Gbps TQ backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 1 x Slim DVD-ROM Drive
Optional 1 x USB + COM port tray
Front Panel
Buttons:
- Power On/Off button
- System Reset Button
LEDs:
- 2 Network Activity LEDs
- HDD activity LED
- Power Status LED
- System Information LED
Systems Cooling
Fans: 4 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range: 5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range: -40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply
1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
Power Efficiency: 94%
Total Output Power and Input:
400W with Input 100 - 240Vac
400W with Input200 - 240
AC Input Frequency: 50-60Hz
Output Type: Backplanes (gold finger)
+12V: Max: 33A (100Vac - 240Vac)
+5Vs: Max: 3A / Min: 0A
Certification: Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:
- BSMI
- CCC
- CE/EMC
- FCC class A
- UL/CB
- UL/CUL
Item Dimension (L inchxW inchxH inch)
20 x 18 x 2
Weight
33.50 lb
Warranty Information
1 Year
1.1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
2.4 x 3.5" hot-swap SAS/SATA
3.4-port 1U SAS3 12Gbps TQ backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
4.1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
5.Up to , 1 full-height and full-length expansion slot(s)
6.4 x 40x28mm PWM fan(s)
Form Factor
1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6".
Processor Support
Dual and Single Intel and AMD processors
Available Color
Black
Expansion Slots
1 full-height and full-length expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA
Backplane
4-port 1U SAS3 12Gbps TQ backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 1 x Slim DVD-ROM Drive
Optional 1 x USB + COM port tray
Front Panel
Buttons:
- Power On/Off button
- System Reset Button
LEDs:
- 2 Network Activity LEDs
- HDD activity LED
- Power Status LED
- System Information LED
Systems Cooling
Fans: 4 x 40x28mm PWM fan(s)
Operating Environment (System)
Operating Temperature Range: 5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range: -40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply
1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
Power Efficiency: 94%
Total Output Power and Input:
400W with Input 100 - 240Vac
400W with Input200 - 240
AC Input Frequency: 50-60Hz
Output Type: Backplanes (gold finger)
+12V: Max: 33A (100Vac - 240Vac)
+5Vs: Max: 3A / Min: 0A
Certification: Platinum Certified Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:
- BSMI
- CCC
- CE/EMC
- FCC class A
- UL/CB
- UL/CUL
Item Dimension (L inchxW inchxH inch)
20 x 18 x 2
Weight
33.50 lb
Warranty Information
1 Year
