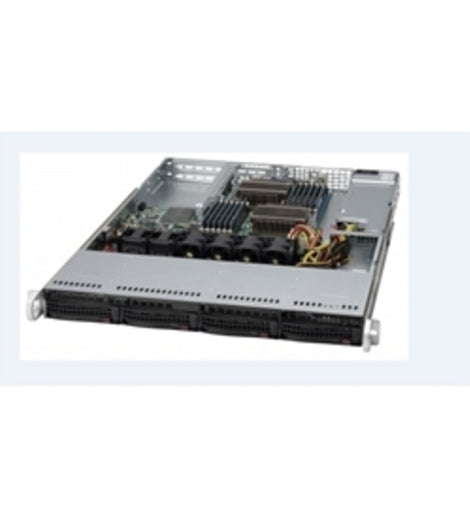

Supermicro Case CSE-815TQC-605WB 1U 4-Port 12Gbps 4x3.5" hot-swap SAS/SATA 600W Brown Box
1. 1U chassis, upport Proprietary motherboard size 12.3" x 13", Proprietary 8.15" x 13.05"
2. 4 x 3.5" hot-swap SAS/SATA
3. SAS or enterprise SATA HDD only recommended
4. 1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD
5. 1U 600W platinum efficiency multiple output power supply w/pmbus
6. 2 full-height and full-length expansion slot(s) , 1 low-profile expansion slot(s)
7. 4 x 40x56mm counter-rotation PWM fan(s)
Form Factor
1U chassis, upport Proprietary motherboard size 12.3" x 13", Proprietary 8.15" x 13.05"
Processor Support
Dual, single Intel / AMD processors
Dimensions
Available ColorBlack
Expansion Slots
2 full-height and full-length expansion slot(s)
1 low-profile expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA
SAS or enterprise SATA HDD only recommended
Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Front Panel
Buttons:Power On/Off button
System Reset Button
Unit Identification (UID) button
LEDs:2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Motherboard (for CSE- 815TQC-605WB)
X11SSW-F
X11DDW-L
X11DDW-NT
X11SPW-TF
X11SPW-CTF
Servers (for CSE- 815TQC-605WB)
6019P-WT
5019P-WT
Systems Cooling
Fans:4 x 40x56mm counter-rotation PWM fan(s)
Operating Environment (System)
Operating Temperature Range:5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range:-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range:8% - 90% (non-condensing)
Non-Operating Relative Humidity Range:5% - 95% (non-condensing)
Power Supply
1U 600W platinum efficiency multiple output power supply w/pmbus
Power Efficiency:92%
Total Output Power and Input:600W with Input 100 - 240Vac
AC Input Frequency:50-60Hz
Dimensions (L x W x H):279.4 x 76 x 40.4 mm
Output Type:24pin ATX
-12V:Max: 0.5A / Min: 0A
+12V:Max: 49A / Min: 0.5A (100Vac - 240Vac)
+5V:Max: 18A / Min: 0.5A
+3.3V:Max: 15A / Min: 0.5A
+5Vsb:Max: 3A / Min: 0A
Certification: Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Item Dimension (L inchxW inchxH inch)
34 x 24 x 9
Weight
45.00lb
Warranty Information
1 Year
2. 4 x 3.5" hot-swap SAS/SATA
3. SAS or enterprise SATA HDD only recommended
4. 1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD
5. 1U 600W platinum efficiency multiple output power supply w/pmbus
6. 2 full-height and full-length expansion slot(s) , 1 low-profile expansion slot(s)
7. 4 x 40x56mm counter-rotation PWM fan(s)
Form Factor
1U chassis, upport Proprietary motherboard size 12.3" x 13", Proprietary 8.15" x 13.05"
Processor Support
Dual, single Intel / AMD processors
Dimensions
Available ColorBlack
Expansion Slots
2 full-height and full-length expansion slot(s)
1 low-profile expansion slot(s)
Drive Bays
4 x 3.5" hot-swap SAS/SATA
SAS or enterprise SATA HDD only recommended
Backplane
1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Front Panel
Buttons:Power On/Off button
System Reset Button
Unit Identification (UID) button
LEDs:2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED
Motherboard (for CSE- 815TQC-605WB)
X11SSW-F
X11DDW-L
X11DDW-NT
X11SPW-TF
X11SPW-CTF
Servers (for CSE- 815TQC-605WB)
6019P-WT
5019P-WT
Systems Cooling
Fans:4 x 40x56mm counter-rotation PWM fan(s)
Operating Environment (System)
Operating Temperature Range:5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range:-40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range:8% - 90% (non-condensing)
Non-Operating Relative Humidity Range:5% - 95% (non-condensing)
Power Supply
1U 600W platinum efficiency multiple output power supply w/pmbus
Power Efficiency:92%
Total Output Power and Input:600W with Input 100 - 240Vac
AC Input Frequency:50-60Hz
Dimensions (L x W x H):279.4 x 76 x 40.4 mm
Output Type:24pin ATX
-12V:Max: 0.5A / Min: 0A
+12V:Max: 49A / Min: 0.5A (100Vac - 240Vac)
+5V:Max: 18A / Min: 0.5A
+3.3V:Max: 15A / Min: 0.5A
+5Vsb:Max: 3A / Min: 0A
Certification: Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
Item Dimension (L inchxW inchxH inch)
34 x 24 x 9
Weight
45.00lb
Warranty Information
1 Year
