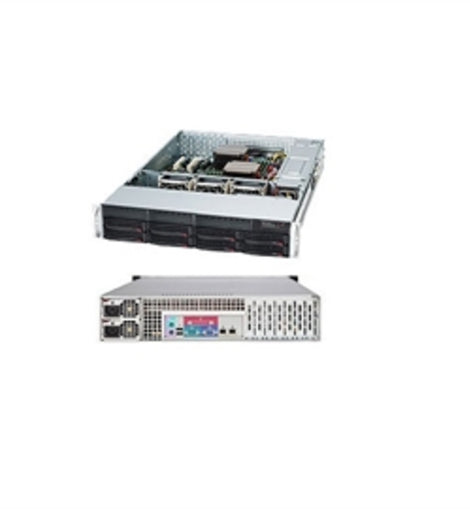

Supermicro Case CSE-825TQC-R1K03LPB 2U 8x3.5 inch HotSwap SAS3/SATA 2x3.5 inch 1000 Watts RPS Brown Box
Key Features
1. SAS3(12 Gbps) HDD support
2. 8x 3.5" Hot-swap SAS3/ SATA Drive Bays and 2x Fixed 3.5" Drive Bays
3. 1000W Redundant Power Supplies Titanium Level (96%)
4. Adjustable Air Shroud with Enhanced cooling design
5. 7 Slots Low-profile PCI expansion
6. Power button, Power switch and 6 LED Indicators
Form Factor
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
Processor Support
Dual and Single Intel and AMD processors
Available Color
Black
Expansion Slots
7 low-profile expansion slot(s)
Drive Bays
8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
2 x 3.5" fixed drive bay
Backplane
8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Peripheral Drives
Optional 1 x slim DVD-ROM drive bay
Optional 2 x USB 2.0 ports
Optional 1 x COM port tray
Optional 2 x USB 3.0 ports
Front Panel
Buttons:
Power On/Off button
System Reset Button
LEDs:
2 Network Activity LEDs
HDD activity LED
Power Status LED
Power Fail LED
System Information LED
Motherboard (for CSE- 825TQC-R1K03LPB)
X11DPi-N
X11DPi-NT
Servers (for CSE- 825TQC-R1K03LPB)
6029P-TR
6029P-TRT
Systems Cooling
Fans: 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control
Operating Environment (System)
Operating Temperature Range: 5oC - 35oC (41oF - 95oF)
Non-Operating Temperature Range: -40oC - 70oC (-40oF - 158oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Power Supply
1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus
Power Efficiency: 96%
Total Output Power and Input:
800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
1000W with Input 200 - 240Vdc
AC Input Frequency: 50-60Hz
Dimensions (L x W x H): 336 x 76 x 40 mm
Output Type: Backplanes (gold finger)
+12V:
Max: 66.7A (100Vac - 127Vac)
Max: 83A (200Vac - 240Vac)
Max: 83A (200 - 240)
+5Vsb: Max: 4A / Min: 0A
Power Distributor:
PDB-PT825-8824
O/P: 12V/75
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6
Certification: Titanium Certified
Regulatory (Power Supply)
Power Supply Safety / EMC:
BSMI
CCC
CE/EMC
FCC class A
UL/CB
UL/CUL
Item Dimension (L"xW"xH")
NA
Weight
55 lbs
Warranty Information
3 years labor, 1 year parts, 1 year limited cross ship
