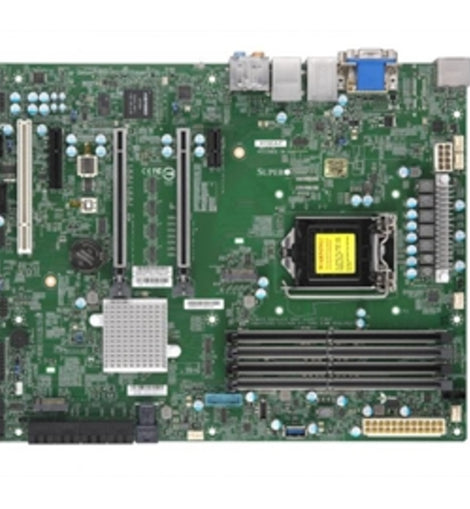

Supermicro Motherboard MBD-X11SCA-F-B Core i3 Socket 1151 C246 Up to 64GB PCIE SATA ATX Nulk Pack
Key Features
1.8th Generation Intel Core i3 Processors, Intel Celeron, Intel Pentium, Intel Xeon E processor (Coffee Lake-S) Server, Intel Xeon E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
2.Intel C246
3.Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4.1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 2.0 x4, RAID 0 and 1
M.2 Form Factor: 22110
M.2 Key: M-Key
M.2 number1-2 are shared with PCI-Ex4 slot, M.2 number2 is shared with U.2
U.2 Interface: 1 PCI-E 3.0 x4
5.1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,
HDMI is HDMI2.0a, DP is DP1.2, VGA Port is for IPMI only
6.Intel C246 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
7.Single LAN with Intel Ethernet Controller I210-AT
Shared with IPMI
Single LAN with Intel PHY I219LM LAN controller
Support vPro
Physical Stats
Form Factor: ATX
Dimensions: 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU:
8th Generation Intel Core i3 Processors, Intel Celeron, Intel Pentium, Intel Xeon E processor (Coffee Lake-S) Server, Intel Xeon E processor (Coffee Lake-S) Workstation.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity: Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type: N/A
DIMM Sizes: 1GB, 2GB, 4GB, 8GB, 16GB
Memory Voltage: 1.2V
On-Board Devices
Chipset: Intel C246
SATA: Intel C246 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI: ASPEED AST2500
Network Controllers:
Single LAN with Intel Ethernet Controller I210-AT
Shared with IPMI
Single LAN with Intel PHY I219LM LAN controller
Support vPro
Graphics:
Aspeed AST2500 BMC
HDMI is HDMI2.0a, DP is DP1.2, VGA Port is for IPMI only
Input / Output
LAN: 2 1GbE LAN ports
USB:
2 USB 2.0 ports (2 headers)
4 USB 3.1 Gen1 ports (2 Rears Type A)
4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 header, 1 Type A)
Video Output:
1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,
HDMI is HDMI2.0a, DP is DP1.2, VGA Port is for IPMI only
Serial Port / Header: 1 COM Port (1 header)
TPM: 1 TPM Header
Expansion Slots
PCI-E:
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2:
M.2 Interface: 2 PCI-E 2.0 x4, RAID 0 and 1
Form Factor: 22110
Key: M-Key
M.2 number1-2 are shared with PCI-Ex4 slot, M.2 number2 is shared with U.2
System BIOS
BIOS Type: UEFI 128Mb
Management
Software: AMT, IPMI2.0, SSM, SUM, SuperDoctor 5, vPro, Watchdog
System Management Software:
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
OOB Bios refresh is not supported on X11SCA-F
SuperDoctor 5
Power Configurations:
ACPI Power Management
ATX Power connector
Power-on mode for AC power recovery
Keyboard Wakeup from Soft-Off
PC Health Monitoring
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, VBAT
FAN: 5 fans with tachometer status monitoring, Fan speed control, Low noise fan speed control, PWM fan speed control
Temperature: N/A
LED: Standby alert LED
Other Features: 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, RoHS, WOL
Operating Environment
Operating Temperature Range: 0oC - 50oC (32oF - 122oF)
Item Dimension (L"xW"xH")
NA
Weight
3 lbs
Warranty Information
1 Year
1.8th Generation Intel Core i3 Processors, Intel Celeron, Intel Pentium, Intel Xeon E processor (Coffee Lake-S) Server, Intel Xeon E processor (Coffee Lake-S) Workstation., Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
2.Intel C246
3.Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
4.1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 2.0 x4, RAID 0 and 1
M.2 Form Factor: 22110
M.2 Key: M-Key
M.2 number1-2 are shared with PCI-Ex4 slot, M.2 number2 is shared with U.2
U.2 Interface: 1 PCI-E 3.0 x4
5.1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,
HDMI is HDMI2.0a, DP is DP1.2, VGA Port is for IPMI only
6.Intel C246 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
7.Single LAN with Intel Ethernet Controller I210-AT
Shared with IPMI
Single LAN with Intel PHY I219LM LAN controller
Support vPro
Physical Stats
Form Factor: ATX
Dimensions: 12" x 9.6" (30.48cm x 24.38cm)
Processor/Cache
CPU:
8th Generation Intel Core i3 Processors, Intel Celeron, Intel Pentium, Intel Xeon E processor (Coffee Lake-S) Server, Intel Xeon E processor (Coffee Lake-S) Workstation.
Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
System Memory
Memory Capacity: Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type: N/A
DIMM Sizes: 1GB, 2GB, 4GB, 8GB, 16GB
Memory Voltage: 1.2V
On-Board Devices
Chipset: Intel C246
SATA: Intel C246 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI: ASPEED AST2500
Network Controllers:
Single LAN with Intel Ethernet Controller I210-AT
Shared with IPMI
Single LAN with Intel PHY I219LM LAN controller
Support vPro
Graphics:
Aspeed AST2500 BMC
HDMI is HDMI2.0a, DP is DP1.2, VGA Port is for IPMI only
Input / Output
LAN: 2 1GbE LAN ports
USB:
2 USB 2.0 ports (2 headers)
4 USB 3.1 Gen1 ports (2 Rears Type A)
4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 header, 1 Type A)
Video Output:
1 HDMI port, 1 DVI - D port, 1 DP (DisplayPort) port, 1 VGA port,
HDMI is HDMI2.0a, DP is DP1.2, VGA Port is for IPMI only
Serial Port / Header: 1 COM Port (1 header)
TPM: 1 TPM Header
Expansion Slots
PCI-E:
1 PCI-E 3.0 x4,
1 PCI-E 3.0 x1,
2 PCI-Ex16 slots are running at NA/16, or 8/8
1 - 5V PCI 32bit
M.2:
M.2 Interface: 2 PCI-E 2.0 x4, RAID 0 and 1
Form Factor: 22110
Key: M-Key
M.2 number1-2 are shared with PCI-Ex4 slot, M.2 number2 is shared with U.2
System BIOS
BIOS Type: UEFI 128Mb
Management
Software: AMT, IPMI2.0, SSM, SUM, SuperDoctor 5, vPro, Watchdog
System Management Software:
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
OOB Bios refresh is not supported on X11SCA-F
SuperDoctor 5
Power Configurations:
ACPI Power Management
ATX Power connector
Power-on mode for AC power recovery
Keyboard Wakeup from Soft-Off
PC Health Monitoring
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, VBAT
FAN: 5 fans with tachometer status monitoring, Fan speed control, Low noise fan speed control, PWM fan speed control
Temperature: N/A
LED: Standby alert LED
Other Features: 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, RoHS, WOL
Operating Environment
Operating Temperature Range: 0oC - 50oC (32oF - 122oF)
Item Dimension (L"xW"xH")
NA
Weight
3 lbs
Warranty Information
1 Year
