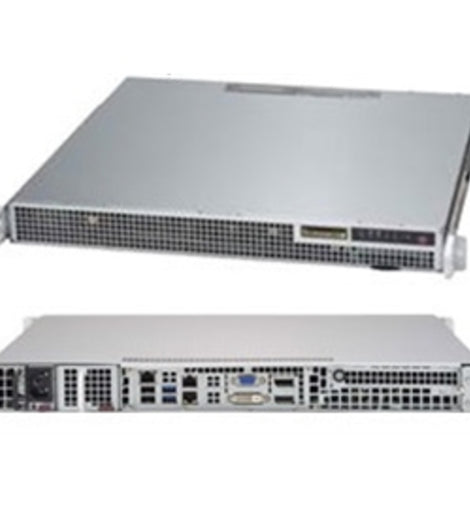

Supermicro System SYS-1019S-M2 1U Core i7/i5/i3 Socket H4 LGA1151 Q170 SATA PCI Express 400W Retail
Key Features:
o Embedded, 7-year life cycle
o Industrial Automation and Control
o Military Compact Server
o VOIP and Network Appliances
o Medical Applications
1. Single socket H4 (LGA 1151) supports Intel 6th Gen. Core i7/i5/i3 series, Intel Celeron and Intel Pentium processors
2. Intel Q170 Express chipset
3. 2x 2.5" Fixed drive bays
4. Up to 64GB Unbuffered Non-ECC UDIMM DDR4 2133MHz 4 DIMM slots
5. 1x PCI-E 3.0 x16 (in x16) slot
6. 1x GbE LAN w/ Intel i210-AT, 1x GbE LAN w/ Intel PHY i219LM
7. Integrated IPMI 2.0 and KVM with Dedicated LAN, vPro supported
8. 2x DP, 1 DVI-I, Intel HD Graphics, with 3x independent displays, VGA for BMC AST2400
9. 400W Platinum Level Power Supply + Optional 2nd redundant 400W Power supply or Battery Backup Unit
Processor/Cache
CPU:
- Intel 6th Gen Core i7/i5/i3 series, Intel Celeron, Intel Pentium processors CPU TDP support up to 80W TDP
Single Socket H4 (LGA 1151)
System Memory
Memory Capacity:
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4 Non-ECC UDIMM
Memory Type: 2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes:
- 16GB, 8GB, 4GB
Memory Voltage: 1.2V
On-Board Devices
Chipset: Intel Q170 Express Chipset
SATA:
- SATA3 (6Gbps) Via Intel Q170 Express Controller
- RAID 0, 1 Support
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers:
- Intel PHY i219LM + Intel i210AT Gigabit Ethernet LAN Controllers
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio: RealTek ALC 888S High Definition Audio
Video: ASPEED AST2400 BMC and Intel HD Graphics 530
Input/Output
SATA:
- 2x SATA3 (6Gbps) ports RAID 0, 1
LAN:
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB:
- 2x USB 3.0 ports (2 rear)
- 3x USB 2.0 ports (2 rear + 1 Type A)
Video/Display:
- 2x DP (Display Port), 1x DVI-I from Intel HD Graphics, 1x VGA from AST2400
- 3x Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
Serial Port/Header: 2x serial headers
SuperDOM: 1x SuperDOM (Disk on Module) ports with built-in power
System BIOs
BIOs Type: 128Mb SPI Flash EEPROM with AMI BIOS
BIOs Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 3.0
- ACPI 5.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 3.0
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup
Management
Software:
- AMT
- IPMI 2.0 with KVM Support
- NMI
- vPro
- Watch Dog
- Super Doctor 5
Power Configurations:
- ACPI Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery
Front Panel
Buttons:
- Power On/Off Button
- System Reset Button
LEDs:
- Power LED
- Hard Drive Activity LED
- 2 x Network Activity LEDs
- System Overheat LED
Expansion Slots
PCI-Express: 1 x PCI-E 3.0 x16 (in x16) slot
Drive Bays
Internal: 2 x 2.5" Fixed SATA3 drive bays
System Cooling
Fans: 4 x 40x56mm PWM fan 2 x fans for AOC cooling
Power Supply
400W Platinum level power supply with PMBus and I2C
AC Input: 1 400W: 100 to 240 V, 50 to 60 Hz
DC Output:
- +5V Standby: 3 Amp
- DC Output +12V: 33 Amp
Certification: 80PLUS PLATINUM Level
Amp
Certification: 80PLUS PLATINUM Level
Operating Environment / Compliance
RoHS: RoHS Compliant
Environmental Specs:
- Operating Temperature: 0 C to 35 C (32 F to 95 F)
- Non-Operating Temperature: -40 C to 70 C (-40 F to 158 F)
- Operating Relative Humidity: 8% to 90% (Non-Condensing)
- Non-Operating Relative Humidity: 5% to 95% (Non-Condensing)
Form Factor
1U Rackmount
Item Dimension (L"xW"xH")
24 x 24 x 8
Weight
30.40 lb
Warranty Information
1 Year
