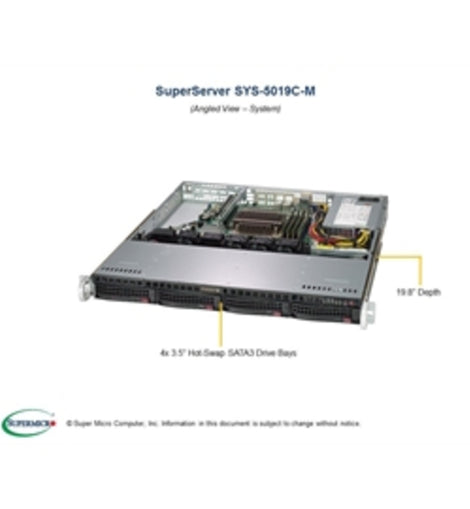

Supermicro System SYS-5019C-M 1U S1151 C246 128GB DDR4 PCIE/USB/SATA Black Brown Box
Key Features
o General Purpose, SMB, Web Hosting
o Application and data serving
o Archiving, Mail/Finance, Security
1. Single Socket H4 (LGA 1151) supports Intel(R) Xeon(R) processor E-2100, 8th Gen. Intel(R) Core(TM) i3 Processors, Intel(R) Celeron(R), Intel(R) Pentium(R)
2. Intel(R) C246 chipset
3. Up to 128GB ECC UDIMM, up to DDR4-2666MHz 4 DIMM slots
4. 1 PCI-E 3.0 x16 slot
5. 4 Hot-swap 3.5" drive bays
6. M.2 Interface:
1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
7. 2 GbE LAN ports, 1 dedicated IPMI LAN
8. 2 USB 3.1 (rear), 2 USB 2.0 (rear)
9. 1 VGA, 1 COM, 1 TPM header
10. 350W Multi-output power supply, Platinum Level Certified
Motherboard
Super X11SCM-F
Processor
CPU
Single Socket H4 (LGA 1151), CPU TDP support up to 95W
Support Intel Xeon Processor E-2100 series, 8th Gen. Intel Core i3 / Pentium / Celeron Processors
Cores / Cache
6 cores, 12 threads
System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM
Up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
32GB, 16GB, 8GB, 4GB
Note
128GB system memory capacity will be available in 2019 through a published BIOS update.
On-Board Devices
Chipset
Intel C246 chipset
SATA
SATA3 (6Gbps) via Intel C246 controller
RAID 0, 1, 5, 10 support
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel I210-AT
Video
ASPEED AST2500 BMC
Input / Output
SATA
6 SATA3 (6Gbps) ports RAID 0, 1, 5, 10
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.1 ports (rear)
2 USB 2.0 ports (rear)
Video
1 VGA port
Serial Port / Header
1 COM port (header)
TPM
1 TPM 2.0 Header
System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
Intel Node Manager
IPMI 2.0
NMI
SSM, SPM, SUM
Watch Dog
SuperDoctor 5
Chassis
Form Factor
1U Rackmount
Model
CSE-813MFTQC-350CB2
Available Colors
Black
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Expansion Slots
PCI-Express
1 PCI-E 3.0 x16 slot
M.2
M.2 Interface:
1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Drive Bays
Hot-swap
4 Hot-swap 3.5" drive bays
System Cooling
Fans
4x 40x28mm PWM fans
Power Supply
350W AC power supply w/ PFC
AC Voltage
100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
Max.: 15 Amp
Min.: 0.2 Amp
+5V standby
Max.: 3 Amp
Min.: 0 Amp
+12V
Max.: 29 Amp
Min.: 0.5 Amp
-12V
Max.: 0.2 Amp
Min.: 0 Amp
+3.3V
Max.: 12 Amp
Min.: 0.2 Amp
Certification
Platinum Level Certified
PC Health Monitoring
CPU
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10oC to 35oC (50oF to 95oF)
Non-operating Temperature:
-40oC to 70oC (-40oF to 158oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
Item Dimension (L"xW"xH")
30 x 24 x 9
Weight
47 lbs
Warranty Information
1 Year
