Key Features:



o SMB, Web hosting, File/Print

o Network-Centric, General Purpose

o Mainstream Domain Controller

1. Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i3 series

2. Intel C236 chipset

3. 4x 3.5" Hot-swap SATA3 bays w/ RAID

4. Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz 4x DIMM slots

5. 1 PCI-E 3.0 x8 (in x16) AOC slot

6. 4x GbE ports with Intel i210-AT

7. Integrated IPMI 2.0 and KVM with Dedicated LAN

8. I/O ports: 1x VGA, 2x COM, 2x USB 3.0 (front/rear), USB 2.0

9. 350W Platinum Level Power Supply

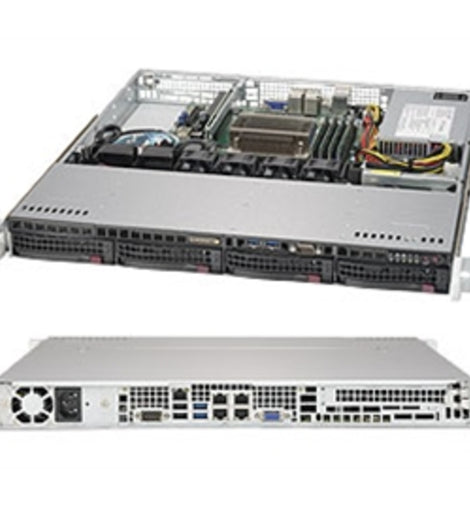

Form Factor
1U Rackmount
Processor/Cache
CPU:
- Single Socket H4 (LGA 1151) Supports
- Intel Xeon Processor E3-1200v5, Intel 6th Gen Core i3
- CPU TDP up to 80W
System Memory
Memory Capacity:
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4 ECC UDIMM
Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Size: 16GB, 8GB, 4GB
Memory Voltage: 1.2V
Error Detection:
- Corrects Single Bit Errors
- Detects Double Bit Errors (Using ECC Memory)
On-Board Devices
Chipset: Intel C236 Chipset
SATA:
- SATA 3 (6Gbps) via C236 Controller
- RAID 0, 1, 5, 10 Support
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers:
- Quad Intel I210-AT Gigabit Ethernet LAN ports
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video: ASPEED AST2400 BMC
Input/Output
SATA: 4 x SATA 3 (6Gbps) Ports
LAN:
- 4 x RJ45 Gigabit Ethernet LAN Ports
- 1 x RJ45 Dedicated IPMI LAN Ports
USB:
- 2 x USB 3.0 Port (Front/Rear)
- 2 x USB 2.0 Ports
Video: 1 x VGA Port
Serial Port/Header: 2 x COM Ports (1 Rear, 1 Header)
SuperDOM: 2x SuperDOM (Disk on Module) ports with built-in power
PC Health Monitoring
Voltage: Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages
Fan:
- Total of 4 fan headers supporting up to 4 fans
- 4 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
LED:
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
Other Features:
- Chassis Intrusion Detection
- Chassis Intrusion Header
- Chipkill Support
- RoHS, Halogen Free
Front Panel
Buttons:
- Power On/Off Button
- System Reset Button
LEDs:
- Power LED
- Hard Drive Activity LED
- 2 x Network Activity LEDs
- System Overheat LED
Expansion Slots
PCI-Express:
- 1 x PCI-E 3.0 x8 (in x16) AOC Slot
- 1 x M.2 Connector
Drive Bays
Hot-Swap: 4 x 3.5 Hot-Swap SATA3 Drive Bays
Peripheral Drives
Optional: 2 x 2.5 Fixed Drives Internal
Backplane
SAS/SATA HDD Backplane
(SAS Support Required Optional SAS Controller)
System Cooling
Fans: 4x 40x28mm 4-Pin PWM Cooling Fan
Power Supply
300W AC Power Supply w/PFC
AC Voltage: 100 to 240V, 50/60Hz, 4.2 to 1.8 Amp
- +5V: Max 15 Amp / Min 0.2 Amp
- +5V Standby: Max 3 Amp / Min 0 Amp
- +12V: Max 29 Amp / Min 0.5 Amp
- (-12V:) Max 0.2 Amp / Min 0 Amp
- +3.3V: Max 12 Amp / Min 0.2 Amp
Certification: 80PLUS Platinum Level Certified
System BIOs
BIOs Type: 8MB SPI Flash EEPROM with AMI BIOS
BIOs Features:
-DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
Operating Environment/Compliance
RoHS: RoHS Compliant
Environmental Specs: Operating Temperature: 10 C to 35 C (50 F to 95 F)
Non-Operating Temperature: -40 C to 70 C (-40 F to 158 F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
20 x 24 x 8

DIM Weight
42.00 lbs

Warranty Information
1 Year
