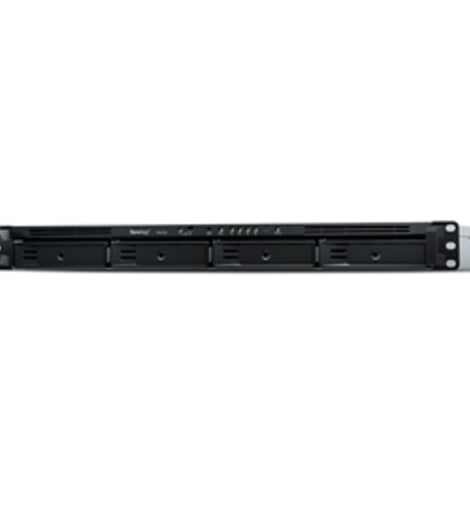

Synology Network Attached Storage RX418 1U 4Bay 1xeSATA Expansion Unit Retail
Storage capacity expansion
When the storage capacity on Synology 1U RackStation reaches its limit, Synology expansion unit RX418 provides easy capacity expansion by adding 4 3.5"/2.5" SATA drives to the system. Synology RX418 can also be used as a dedicated local backup destination of Synology 1U RackStation for comprehensive data protection.
Reliable plug-and-play design
Simply connect Synology RX418 to corresponding Synology RackStation and it is ready to use. Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.
Green and easy to manage
Award-winning Synology DSM provides an intuitive user interface for easy system management. Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives.
Storage
Drive Bays: 4
Compatible Drive Type: 3.5" SATA HDD / 2.5" SATA HDD / 2.5" SATA SSD
Maximum Internal Raw Capacity: 48 TB (12 TB drive x 4) (Capacity may vary by RAID types)
Hot Swappable Drive: Yes
RAID Management through Synology DSM: Yes
External Ports
eSATA port: 1
Power
Power Recovery: Synchronized with the Synology RackStation
Power Supply Unit / Adapter: 100W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption:
- 23.26 W (Access)
- 6.39 W (HDD Hibernation)
British Thermal Unit:
- 79.42 BTU/hr (Access)
- 21.82 BTU/hr (HDD Hibernation)
Note: Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature: 5oC to 35oC (40oF to 95oF)
Storage Temperature: -20oC to 60oC (-5oF to 140oF)
Relative Humidity: 5% to 95% RH
Others
System Fan: 40 mm x 40 mm x 3 pcs
Noise Level: 25.1 dB(A)
Note: Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle, Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75oC, Humidity: 58.2-61.8%
Certification
FCC
CE
BSMI
EAC
VCCI
RCM
KC
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Users Guide X 1
Accessory Pack X 1
AC Power Cord X 1
Expansion Cable: eSATA X 1
Optional Accessories
Synology RKS1317 - Rail Kit Sliding
Synology RKM114 - Rail Kit Mounted
Item Dimension ( L inch x W inch x H inch)
21 x 16 x 6
Weight
15 lb
Warranty Information
3 Years
