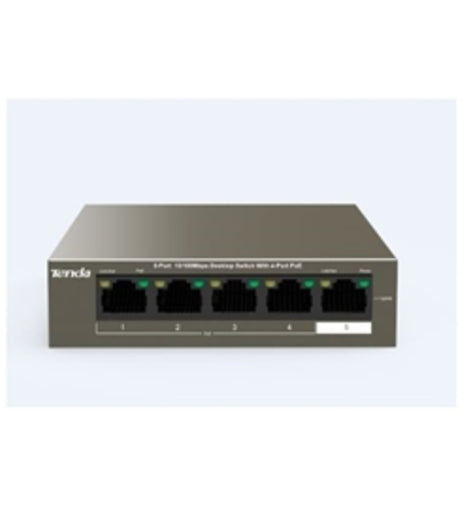

TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission,
beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch.
Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the
whole device.



5*10/100 Mbps Base-TX RJ45 port Ports 1-4: IEEE 802.3af/at PoE ports

maximum power output of each PoE port: 30W maximum power output of
the switch: 58W

Desktop size, metal case, Power Adapter Output 63W

Support extend mode, the transmission distance of both power and data will
extend up to 250m


Standard and Protocol
IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3afIEEE 802.3at

Indicator
5xLink/Act per device
4xPoE per device
1xPower per device

Interface
4 10/100Base-Tx ports(Data/Power)
10/100Base-Tx port(Data)

Port
Lightning Protection: 6KV

Store and Forward
Yes

exchange capacity
1 Gbps

Packet Forwarding Rate
0.744Mpps

MAC Address Table
2K

PoE supply management
Port 1 to Port 4 support IEEE802.3at/af PoE standard

PoE through pin
1 2 4 5 +,3 6 7 8 -

Power Input
AC:100-240V to 50/60Hz

Power Consumption
in full configuration:<63W
PoE Max Power Supply:58W

Ports feature
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF )
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF )
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
12 x 6 x 4

Weight
3.00 LB

Warranty Information
3 years
