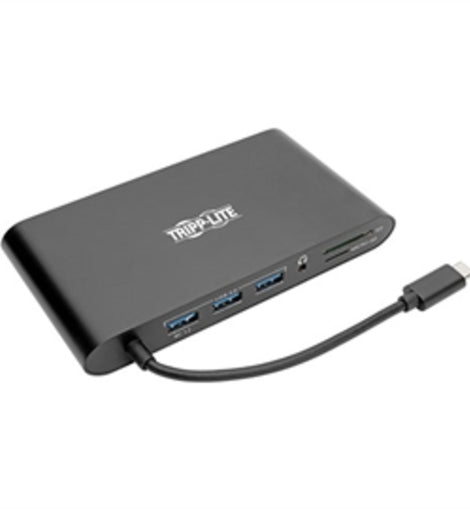

Tirpp-Lite Accessory U442-DOCK1B Thunderbolt3 USB-C Laptop Docking Station with Mini-DisplayPort HDMI Retail
USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation
The U442-DOCK1-B expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more--all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
Highlights
o Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
o Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
o Connects you to a wired Ethernet network when no Wi-Fi is available
o Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
o Easy installation with plug-andplay operation--no software required
INPUT
Bus Powered: Yes
Product Length (in.): 8.30
Color
Black
Cable Jacket
Rating VW-1
ENVIRONMENTAL
Operating Temperature Range: 32 to 113oF (0 to 45oC)
Storage Temperature Range: 14 to 158oF (-10 to 70oC)
BTUs: 17.1 BTU/Hr
Power Consumption (Watts): 5
Operating Humidity Range: 10% to 85% RH, Non-Condensing
Storage Humidity Range: 5% to 90% RH, Non-Condensing
COMMUNICATIONS
Network Speed: 1Gbps
IEEE Standards Supported: 802.3, 802.3u, 802.3az, 802.3x
CONNECTIONS
Ports: 11
Dock Connectors: 3 x USB3.0, 3.5mm Stereo, RJ45 LAN, HDMI, MINI DISPLAYPORT, VGA, MICRO SD, SD, USB-C CHARGING
Side A - Connector 1: USB C (MALE)
Side B - Connector 1: HD15 (FEMALE) HDMI (FEMALE) MINI DISPLAYPORT (FEMALE)
Side B - Connector 2: (3) USB 3.0 A (FEMALE)
Side B - Connector 3: MICRO SD (FEMALE) SD (FEMALE)
Side B - Connector 4: RJ45 (FEMALE)
Side B - Connector 5: USB C (FEMALE)
Side B - Connector 6: 3.5MM (FEMALE)
Connector Plating: Nickel
FEATURES and SPECIFICATIONS
Max Supported Video Resolution: 4K x 2K (3840 x 2160) at 30Hz
Displayport Specification: 1.2
HDMI Specification: 1.4
HDCP Specification: 1.4
USB Specification: USB 3.0 (up to 5 Gbps) USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required: No
Recommended Category Cable: Cat5/Cat5e/Cat6 Cables
USB Power Delivery (PD) Charging Support: Yes
Auto MDIX Support: Yes
Full Duplex Support: Yes
Suspend Mode Support: Yes
Remote Wakeup Support: Yes
CERTIFICATIONS
Certifications: Tested to CE, FCC, RoHS, REACH
Item Dimension ( L inch x W inch x H inch)
6 x 7 x 1
Weight
1.00 lb
Warranty Information
3-year limited warranty
The U442-DOCK1-B expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more--all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
Highlights
o Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode
o Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
o Connects you to a wired Ethernet network when no Wi-Fi is available
o Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
o Easy installation with plug-andplay operation--no software required
INPUT
Bus Powered: Yes
Product Length (in.): 8.30
Color
Black
Cable Jacket
Rating VW-1
ENVIRONMENTAL
Operating Temperature Range: 32 to 113oF (0 to 45oC)
Storage Temperature Range: 14 to 158oF (-10 to 70oC)
BTUs: 17.1 BTU/Hr
Power Consumption (Watts): 5
Operating Humidity Range: 10% to 85% RH, Non-Condensing
Storage Humidity Range: 5% to 90% RH, Non-Condensing
COMMUNICATIONS
Network Speed: 1Gbps
IEEE Standards Supported: 802.3, 802.3u, 802.3az, 802.3x
CONNECTIONS
Ports: 11
Dock Connectors: 3 x USB3.0, 3.5mm Stereo, RJ45 LAN, HDMI, MINI DISPLAYPORT, VGA, MICRO SD, SD, USB-C CHARGING
Side A - Connector 1: USB C (MALE)
Side B - Connector 1: HD15 (FEMALE) HDMI (FEMALE) MINI DISPLAYPORT (FEMALE)
Side B - Connector 2: (3) USB 3.0 A (FEMALE)
Side B - Connector 3: MICRO SD (FEMALE) SD (FEMALE)
Side B - Connector 4: RJ45 (FEMALE)
Side B - Connector 5: USB C (FEMALE)
Side B - Connector 6: 3.5MM (FEMALE)
Connector Plating: Nickel
FEATURES and SPECIFICATIONS
Max Supported Video Resolution: 4K x 2K (3840 x 2160) at 30Hz
Displayport Specification: 1.2
HDMI Specification: 1.4
HDCP Specification: 1.4
USB Specification: USB 3.0 (up to 5 Gbps) USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required: No
Recommended Category Cable: Cat5/Cat5e/Cat6 Cables
USB Power Delivery (PD) Charging Support: Yes
Auto MDIX Support: Yes
Full Duplex Support: Yes
Suspend Mode Support: Yes
Remote Wakeup Support: Yes
CERTIFICATIONS
Certifications: Tested to CE, FCC, RoHS, REACH
Item Dimension ( L inch x W inch x H inch)
6 x 7 x 1
Weight
1.00 lb
Warranty Information
3-year limited warranty
