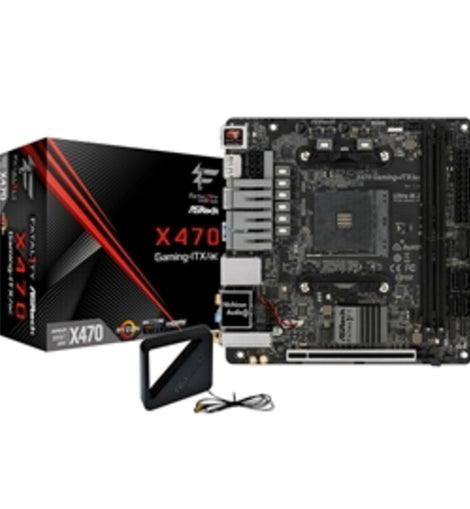

ASRock Motherboard X470 Gaming-ITX/ac AM4 X470 64G DDR4 PCIE HDMI ATX Retail
Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
Supports DDR4 3466+ (OC)
1 PCIe 3.0 x16
Graphics Output: 1 HDMI, 1 DisplayPort
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound BlasterTM Cinema 5
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
2 USB 3.1 Gen2 (Rear Type A+C), 4 USB 3.1 Gen1 (2 Front, 2 Rear), 4 USB 2.0 (2 Front, 1 Rear, 1 Fatal1ty Mouse Port)
Intel(R) Gigabit LAN
Intel(R) 2T2R Dual Band 802.11ac WiFi + BT 5.0 Module, 1 ASRock WiFi 2.4/5 GHz Antenna
Gaming Armor
Power
- Hi-Density Power Connectors (24 pin and 8 pin)
Memory
- 15 Gold Contact in DIMM Slots
VGA Card
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
Internet
- Intel LAN
Cooling
- 2oz Copper PCB
Audio
- Creative Sound Blaster TM Cinema 5
Unique Feature
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- Dual-N MOSFET
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
Intel 802.11ac WiFi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 and SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update and APP Shop
CPU
- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
- Digi Power design
- 8 Power Phase design
- Supports 105W Water Cooling (Pinnacle Ridge) Supports 95W Water Cooling (Summit Ridge) Supports 65W Water Cooling (Raven Ridge)
Chipset
- AMD Promontory X470
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC and non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC and non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB
- 15 Gold Contact in DIMM Slots
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
Graphics
- Integrated AMD RadeonTM Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Max. shared memory 4GB
- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) at 60Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) at 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI 2.0 monitor is required)
- Supports HDCP with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
Actual support may vary by CPU
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Line Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15 Gold Audio Connector
- Supports Creative Sound Blaster TM Cinema 5
LAN
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Wireless LAN
- Intel 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 1733Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.0 + High speed class II
- Supports MU-MIMO
Slots
AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)
Supports NVMe SSD as boot disks
Connector
- 1 x LPC Header
- 1 x AMD Fan LED Header
- 1 x Addressable LED Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15 Gold Audio Connector)
- 1 x AMD LED Fan USB Header
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
Supports in total up to 5V/3A, 15W LED Strip
The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
The Chassis/Water Pump Fan Connector supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
1 x Fatal1ty Mouse Port (USB 2.0) is included
Software and UEFI
Software
- ASRock F-Stream
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
These utilities can be downloaded from ASRock Live Update and APP Shop.
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5 GHz Antenna
- 1 x Screw for M.2 Socket
Hardware Monitor
- Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 2oz Copper PCB
OS
- Microsoft Windows 10 64-bit
