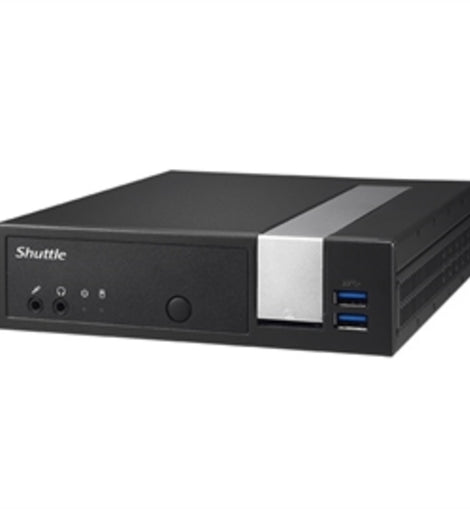

Shuttle System DX30 Apollo Lake J3355 Support max. 8GB RAM and M.2 Retail
A space and energy saver with new Intel(R) Apollo Lake platform
Shuttle provides the all-new slim model DX30 and powered by an Intel(R) Celeron(R) J3355 processor. The DX30 runs a mere 40 watt adapter and integrates the latest Intel(R) Apollo Lake SoC 14nm CPU processor. It is capable to deliver 4K/UHD with Intel(R) integrated graphics GPU engine, made it perfect for digital signage and Kiosk. In order to meet the diverse needs of industrial commercial applications, the DX30 includes a wealth of I / O and high-speed storage interfaces, including USB 2.0, USB 3.0, M.2, PS/2, COM ports, and SATA 6Gbps to meet various of customer's requirements. Also, the DX30 has built-in one DisplayPort and one HDMI as well as one optional VGA (XPC accessory PVG01) ports to support up to three independent displays. Its VESA compliant chassis fills a mere 1.3 liter and measures 43mm thick for easy integration in any places with limited space. The DX30 is certified continuous 24/7 operation and uses a fan-less cooling design, making it a very silent and stable machine for long-term operation.
Intel(R) Apollo Lake Platform Technology
The all-new DX30 supports Intel(R) Apollo lake platform technology, equipped with 14 nm Intel(R) Celeron(R) J3355 dual-core processor. Support 1.35V DDR3L low-voltage memory with a maximum capacity up to 8GB, able to reduce thermal energy production and overall energy consumption.
Support 4K Ultra HD
The DX30 is built-in HDMI and DisplayPort video outputs to support 4K high resolution (3840x2160). Now with four times the resolution of Full HD, viewers can enjoy the super detailed and crystal clear imaging of 4K.
Support HEVC/H.265 high-definition video playback
The Intel(R) Apollo Lake processor is built-in HEVC/H.265 and VP9 video decoding. The DX30 can decode the video with the latest generation codecs and reduce CPU utilization with lower power consumption.
FORM FACTOR
1.3L slim form factor
PROCESSOR
Intel Apollo Lake J3355 CPU Processor
MEMORY
2 x DDR3L SO-DIMM, supports up to 8GB DDR3L 1866 MHz
VIDEO OUTPUT
Intel generation HD Graphic engine
AUDIO
Realtek ALC662
2 channel High Definition Audio
ETHERNET
Intel i211 Gigabit LAN controller
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
802.11b/g/n WLAN support (1T1R)
STORAGE INTERFACE
SATA for HDD/SSD
SD card reader
FRONT PANEL
(1) Power button
(1) Power Led
(1) HD Led
(1) SD Card reader
(2) USB 3.0 port
(1) MIC-IN
(1) Audio out
BACK PANEL
(1) RJ45 Gigabit LAN port
(1) HDMI port
(1) Display port
(4) USB 2.0 ports
(1) DC in
(1) RS232/RS422/RS485
(1) RS232
(1) External power on/Clear CMOS header
(1) PS/2 Port
(1) Connectors for WLAN antenna
DRIVE BAYS
(1) 2.5" HDD Max.(9.5mm) / SSD bay
POWER
Input:100- 240V AC
Output: 19V/2.1A or 12V/3.33A DC
40W 19V Adapter bundled
ACCESSORIES
" Optional " PVG01 (VGA output)
EXPANSION SLOT
(1) M.2 Type M (2280)
(1) M.2 Type A/E (2230)
OS SUPPORT
Windows 10 64 bit O.S
Ubuntu Linux O.S
Item Dimension (L inchxW inchxH inch)
11 x 10 x 6
Weight
4.00 lb
Warranty Information
3 Years
Shuttle provides the all-new slim model DX30 and powered by an Intel(R) Celeron(R) J3355 processor. The DX30 runs a mere 40 watt adapter and integrates the latest Intel(R) Apollo Lake SoC 14nm CPU processor. It is capable to deliver 4K/UHD with Intel(R) integrated graphics GPU engine, made it perfect for digital signage and Kiosk. In order to meet the diverse needs of industrial commercial applications, the DX30 includes a wealth of I / O and high-speed storage interfaces, including USB 2.0, USB 3.0, M.2, PS/2, COM ports, and SATA 6Gbps to meet various of customer's requirements. Also, the DX30 has built-in one DisplayPort and one HDMI as well as one optional VGA (XPC accessory PVG01) ports to support up to three independent displays. Its VESA compliant chassis fills a mere 1.3 liter and measures 43mm thick for easy integration in any places with limited space. The DX30 is certified continuous 24/7 operation and uses a fan-less cooling design, making it a very silent and stable machine for long-term operation.
Intel(R) Apollo Lake Platform Technology
The all-new DX30 supports Intel(R) Apollo lake platform technology, equipped with 14 nm Intel(R) Celeron(R) J3355 dual-core processor. Support 1.35V DDR3L low-voltage memory with a maximum capacity up to 8GB, able to reduce thermal energy production and overall energy consumption.
Support 4K Ultra HD
The DX30 is built-in HDMI and DisplayPort video outputs to support 4K high resolution (3840x2160). Now with four times the resolution of Full HD, viewers can enjoy the super detailed and crystal clear imaging of 4K.
Support HEVC/H.265 high-definition video playback
The Intel(R) Apollo Lake processor is built-in HEVC/H.265 and VP9 video decoding. The DX30 can decode the video with the latest generation codecs and reduce CPU utilization with lower power consumption.
FORM FACTOR
1.3L slim form factor
PROCESSOR
Intel Apollo Lake J3355 CPU Processor
MEMORY
2 x DDR3L SO-DIMM, supports up to 8GB DDR3L 1866 MHz
VIDEO OUTPUT
Intel generation HD Graphic engine
AUDIO
Realtek ALC662
2 channel High Definition Audio
ETHERNET
Intel i211 Gigabit LAN controller
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
802.11b/g/n WLAN support (1T1R)
STORAGE INTERFACE
SATA for HDD/SSD
SD card reader
FRONT PANEL
(1) Power button
(1) Power Led
(1) HD Led
(1) SD Card reader
(2) USB 3.0 port
(1) MIC-IN
(1) Audio out
BACK PANEL
(1) RJ45 Gigabit LAN port
(1) HDMI port
(1) Display port
(4) USB 2.0 ports
(1) DC in
(1) RS232/RS422/RS485
(1) RS232
(1) External power on/Clear CMOS header
(1) PS/2 Port
(1) Connectors for WLAN antenna
DRIVE BAYS
(1) 2.5" HDD Max.(9.5mm) / SSD bay
POWER
Input:100- 240V AC
Output: 19V/2.1A or 12V/3.33A DC
40W 19V Adapter bundled
ACCESSORIES
" Optional " PVG01 (VGA output)
EXPANSION SLOT
(1) M.2 Type M (2280)
(1) M.2 Type A/E (2230)
OS SUPPORT
Windows 10 64 bit O.S
Ubuntu Linux O.S
Item Dimension (L inchxW inchxH inch)
11 x 10 x 6
Weight
4.00 lb
Warranty Information
3 Years
Shipping
Orders below $100: $10 flat rate
Orders above $100: FREE
Currently we only ship within the US.
Returns
You have 14 calendar days to return an item from the date you received it.
To be eligible for a return, your item must be unopened in the same condition that you received it.
Your item must be in the original packaging.
Your item needs to have the receipt or proof of purchase.
Refunds
Once we receive your item, we will inspect it and notify you that we have received your returned
item. We will immediately notify you on the status of your refund after inspecting the item.
If your return is approved, we will initiate a refund to your credit card (or original method of payment).
You will receive the credit within a certain amount of days, depending on your card issuer's policies.
Shipping
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are nonrefundable.
If you receive a refund, the cost of return shipping will be deducted from your refund.
Contact Us
If you have any questions on how to return your item to us, contact us.
Your may also like
Intel NUC KIT BOXNUC8I7BEH Corei7-8559U Single ...
Intel NUC KIT BOXNUC8I7BEH Corei7-8559U Single Pack Retail + Sku227127 PowerCordProduct Collectio...
Intel NUC KIT BOXNUC8I7BEH Corei7-8559U Single Pack Retail + Sku227127 PowerCordProduct CollectionIntel NUC Kit with 8th Generation Intel CoreTM ProcessorsCode NameProducts formerly BEAN CANYONBoard Form FactorUCFF (4 inch x 4 inch)SocketSoldered-down BGAInternal Drive Form FactorM.2 and 2.5 inch DriveNumber of Internal Drives Supported2Lithography14 nmTDP28 WDC Input Voltage Supported12-19 VDCProcessor IncludedIntel Core TM i7-8559U Processor (8M Cache, up to 4.50 GHz)Embedded Options Availa...
$778.53 $679.57

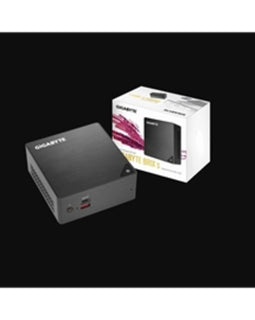

Gigabyte System GB-BRI7-8550-BW Intel Core i7-8...
