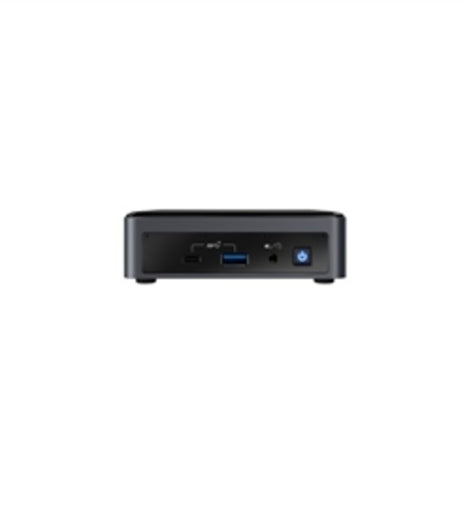

Intel NUC Kit BXNUC10i7FNK1 Core i7-10710U Single Retail
Intel NUC Kit BXNUC10i7FNK1 Core i7-10710U Single Retail
Essentials
Product Collection
Intel NUC Kit with 10th Generation Intel Core Processors
Code Name
Products formerly Frost Canyon
Supported Operating Systems
Windows 10, 64-bit
Board Number
NUC10i7FNB
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
Number of Internal Drives Supported
1
Lithography
14 nm
TDP
25 W
DC Input Voltage Supported
19 VDC
Processor Included
Intel Core i7-10710U Processor (12M Cache, up to 4.70 GHz)
Intel vPro Platform Eligibility
No
Number of Cores
6
Number of Threads
12
Processor Base Frequency
1.10 GHz
Max Turbo Frequency
4.70 GHz
Supplemental Information
Embedded Options Available
No
Description
Other features: Includes far-field quad array microphones
Memory and Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2666 1.2V SO-DIMM
Max Number of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max Number of DIMMs
2
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel UHD Graphics
Integrated Graphics
Yes
Graphics Output
HDMI 2.0a USB-C (DP1.2)
Number of Displays Supported
3
Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
22x42/80
I/O Specifications
Number of USB Ports
7
USB Configuration
2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C) 2x USB 2.0 via internal headers
USB Revision
2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total Number of SATA Ports
2
Max Number of SATA 6.0 Gb/s Ports
2
Audio (back channel + front channel)
7.1 digital (HDMI mDP) L+R mic (F)
Integrated LAN
Intel Ethernet Connection I219-V
Integrated Wireless
Intel Wireless-AX MAC
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt 3 Ports
1
Package Specifications
Chassis Dimensions
117 x 112 x 38mm
Advanced Technologies
Intel Optane Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro Platform Eligibility
No
TPM
No
Intel HD Audio Technology
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes
Security and Reliability
Intel AES New Instructions
Yes
Item Dimension (L"xW"xH")
8 x 5 x 4
Weight
2.71 lbs
Warranty Information
3-year limited
Essentials
Product Collection
Intel NUC Kit with 10th Generation Intel Core Processors
Code Name
Products formerly Frost Canyon
Supported Operating Systems
Windows 10, 64-bit
Board Number
NUC10i7FNB
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 SSD
Number of Internal Drives Supported
1
Lithography
14 nm
TDP
25 W
DC Input Voltage Supported
19 VDC
Processor Included
Intel Core i7-10710U Processor (12M Cache, up to 4.70 GHz)
Intel vPro Platform Eligibility
No
Number of Cores
6
Number of Threads
12
Processor Base Frequency
1.10 GHz
Max Turbo Frequency
4.70 GHz
Supplemental Information
Embedded Options Available
No
Description
Other features: Includes far-field quad array microphones
Memory and Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2666 1.2V SO-DIMM
Max Number of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max Number of DIMMs
2
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel UHD Graphics
Integrated Graphics
Yes
Graphics Output
HDMI 2.0a USB-C (DP1.2)
Number of Displays Supported
3
Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
M.2 slot with PCIe X4 lanes
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
22x42/80
I/O Specifications
Number of USB Ports
7
USB Configuration
2x front (Type-A, Type-C) and 3x rear USB 3.1 Gen2 (2x Type-A, Type-C) 2x USB 2.0 via internal headers
USB Revision
2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total Number of SATA Ports
2
Max Number of SATA 6.0 Gb/s Ports
2
Audio (back channel + front channel)
7.1 digital (HDMI mDP) L+R mic (F)
Integrated LAN
Intel Ethernet Connection I219-V
Integrated Wireless
Intel Wireless-AX MAC
Integrated Bluetooth
Yes
Consumer Infrared Rx Sensor
Yes
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt 3 Ports
1
Package Specifications
Chassis Dimensions
117 x 112 x 38mm
Advanced Technologies
Intel Optane Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro Platform Eligibility
No
TPM
No
Intel HD Audio Technology
Yes
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes
Security and Reliability
Intel AES New Instructions
Yes
Item Dimension (L"xW"xH")
8 x 5 x 4
Weight
2.71 lbs
Warranty Information
3-year limited
Shipping
Orders below $100: $10 flat rate
Orders above $100: FREE
Currently we only ship within the US.
Returns
You have 14 calendar days to return an item from the date you received it.
To be eligible for a return, your item must be unopened in the same condition that you received it.
Your item must be in the original packaging.
Your item needs to have the receipt or proof of purchase.
Refunds
Once we receive your item, we will inspect it and notify you that we have received your returned
item. We will immediately notify you on the status of your refund after inspecting the item.
If your return is approved, we will initiate a refund to your credit card (or original method of payment).
You will receive the credit within a certain amount of days, depending on your card issuer's policies.
Shipping
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are nonrefundable.
If you receive a refund, the cost of return shipping will be deducted from your refund.
Contact Us
If you have any questions on how to return your item to us, contact us.
Your may also like

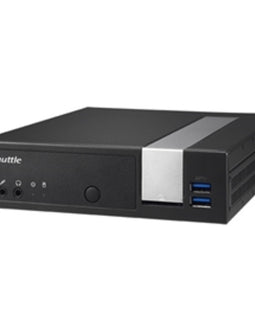

Shuttle System DX30 Apollo Lake J3355 Support m...
A space and energy saver with new Intel(R) Apollo Lake platformShuttle provides the all-new slim ...
A space and energy saver with new Intel(R) Apollo Lake platformShuttle provides the all-new slim model DX30 and powered by an Intel(R) Celeron(R) J3355 processor. The DX30 runs a mere 40 watt adapter and integrates the latest Intel(R) Apollo Lake SoC 14nm CPU processor. It is capable to deliver 4K/UHD with Intel(R) integrated graphics GPU engine, made it perfect for digital signage and Kiosk. In order to meet the diverse needs of industrial commercial applications, the DX30 includes a wealth ...
$274.58 $239.67
Intel NUC KIT BOXNUC8I7BEH Corei7-8559U Single ...
Intel NUC KIT BOXNUC8I7BEH Corei7-8559U Single Pack Retail + Sku227127 PowerCordProduct Collectio...
Intel NUC KIT BOXNUC8I7BEH Corei7-8559U Single Pack Retail + Sku227127 PowerCordProduct CollectionIntel NUC Kit with 8th Generation Intel CoreTM ProcessorsCode NameProducts formerly BEAN CANYONBoard Form FactorUCFF (4 inch x 4 inch)SocketSoldered-down BGAInternal Drive Form FactorM.2 and 2.5 inch DriveNumber of Internal Drives Supported2Lithography14 nmTDP28 WDC Input Voltage Supported12-19 VDCProcessor IncludedIntel Core TM i7-8559U Processor (8M Cache, up to 4.50 GHz)Embedded Options Availa...
$778.53 $679.57

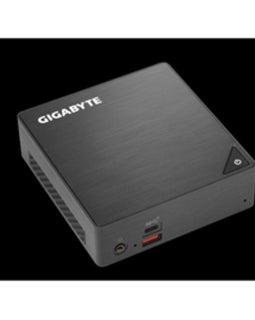

Gigabyte System GB-BRI7-8550-BW Intel Core i7-8...
The Perfect Fit for Any SpaceChallenging the essence of how we define a desktop PC, GIGABYTE engi...
The Perfect Fit for Any SpaceChallenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedi...
$871.33 $760.57

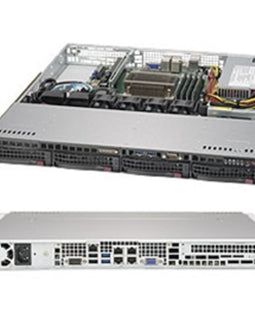

Supermicro System SYS-5019S-MN4 1U Rackmount Xe...
