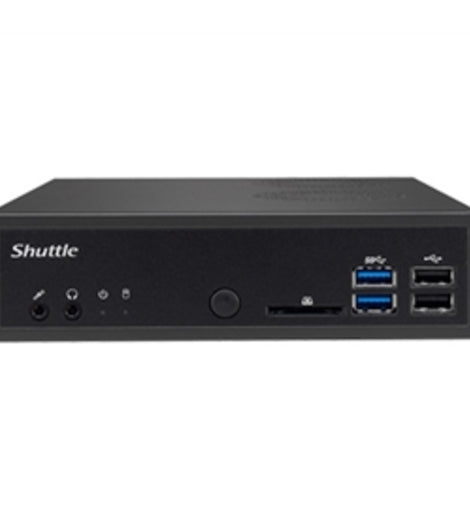

Shuttle System DQ170 Skylake LGA1151 Q170 Max.32GB 4K Support Retail
Higher security slim PC for business applications with Intel(R) vPro(TM) technology
Made for higher security professional applications, Shuttle introduces the first robust 1.3L slim PC DQ170 with Intel(R) Q series chipset. Compared to its DH170 sibling, DQ170 is built-in Intel(R) Q170 chipset to support Intel(R) vPro(TM) processor and onboard Trusted Platform Module (TPM 2.0) to secure highly sensitive data and protect it. With Intel(R) Core (TM) vPro(TM) technology, the DQ170 can support Intel(R) Active Management Technology (Intel(R) AMT) and allow users to control devices remotely, repair, or recover the client PC system via LAN. The DQ170 supports for Intel(R) sixth-generation (Skylake) processors with built-in Intel(R) graphics engine capable of playing 4K/Ultra HD video content at the rear panel of DQ170 provides one HDMI and two DisplayPorts for triple-screen display. 24/7 certified and operable in 0-500C temperatures, the DQ170 features more than enough connectivity and is fit for a variety of commercial applications, such as enterprise, banking, education, government, retail, and hospitality environments.
Feature
o Support Intel(R) 6th Generation Core(TM) vPro(TM) processors
o Equipped with Intel(R) 100 Q series Chipset
o Support Intel(R) AMT Technology
o Support TPM data encryption
o Slim design and Easy assembly
o Heat pipe cooling technology
o Support 4K Ultra HD
o Industrial Solid Capacitors = High Stability
o Support M.2 and Mini PCIe expansion slots
o Support three independent displays
o Support Intel(R) Dual Gigabit LAN
o Great connectivity
o Support Power on by RTC
FORM FACTOR
Shuttle 1.3L Chassis
PROCESSOR
Support Intel Skylake Core i3/i5/i7, Pemtium, Celeron CPU max. TDP 65W
CHIPSET
Intel Q170 Express chipset
MEMORY
2 x 204 pin DDR3L SODIMM slots,16GB per DIMM (Max 32GB)
Dual Channel DDR3L 1600 Mhz
VIDEO OUTPUT
HDMI(1) + DisplayPort(2) Support triple independent display
4K/2K playback (Dual channel memory recommended)
AUDIO
Realtek ALC662 channel High Definition Audio
ETHERNET
Intel i211+i219LM Dual Lan
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
STORAGE INTERFACE
SATA 6.0Gb/s interface
ONBOARD CONNECTORS
(1) SATA 6 connectors
(1) SATA power connector
(1) 4pin fan connector
(1) D-sub connector
(1) Front audio header
(1) 2x5 pin USB header
(1) Auto power on header
FRONT PANEL
(2) USB 3.0 ports
(2) USB 2.0 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader
BACK PANEL
(2) RJ45 Gigabit LAN port
(2) Display port
(1) HDMI port
(2) USB 3.0 ports
(2) USB 2.0 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External power on/Clear CMOS header
(1) DC in
(1) Kensington lock
(2) Wireless Antenna fixture
DRIVE BAYS
(1) 2.5 inch HDD / SSD bay
POWER
90W Power Adapter
Input:100- 240V AC
Output: 19V 4.47A DC
ACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA mount quick installation guide
1 x Power cord
1 x SATA cable
Screws
Optional 802.11b/g/n WLAN module
EXPANSION SLOT
(1) M.2 2260 Type M key socket
(1) Half size Mini-PCIE socket
OS SUPPORT
Windows 10
Windows 8.1
Windows 7
Linux
REMARK
RS232 ports support totally 500mA, 0/5/12V output. Voltage setting please refer to Quick Guide.
Item Dimension (L inchxW inchxH inch)
13 x 10 x 6
Weight
5.85lb
Warranty Information
3 years
